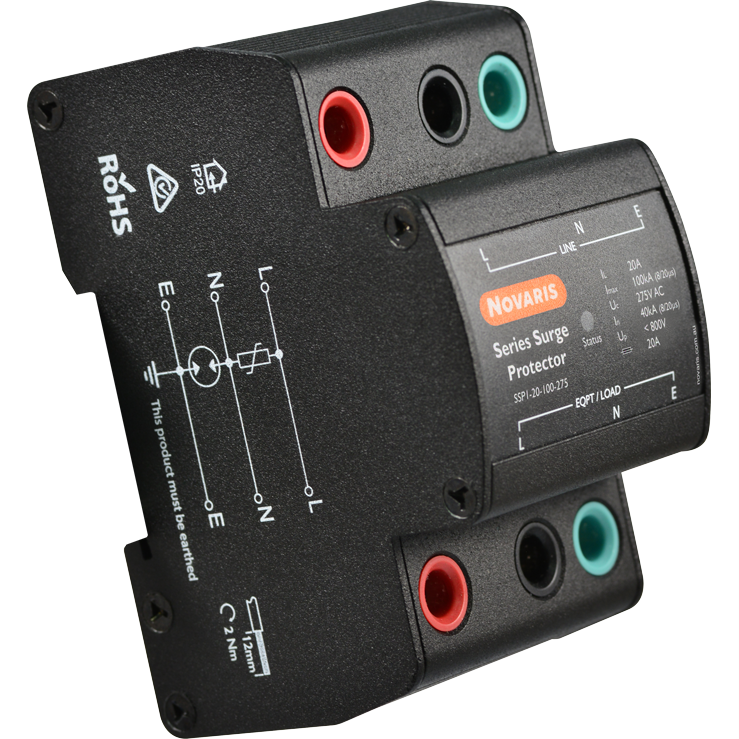

Novaris SSP1-20-100-275 Surge Protector 6.25kA 15kA 1 PH 20A 100kA 230VAC TS35 Panel Mount Metal IP20

Product Code: SSP1-20-100-275

  • Surge protection for 230 VAC, 20 A systems
  • LED status display for easy monitoring
  • Mounts on TS35 DIN Rail or panel
  • Operates in -40 to 70°C environments
  • Complies with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ssp1 Series Surge Protectors
Brand
Novaris
Series
SSP1
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Max. Backup Fuse
20A
Max. Load Current
20A
No. of Phases/Lines
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
<1700V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
