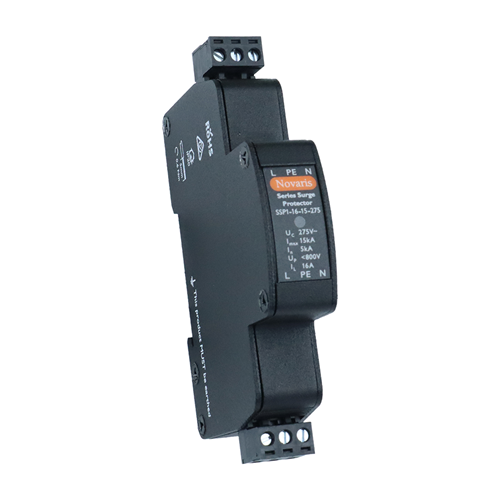

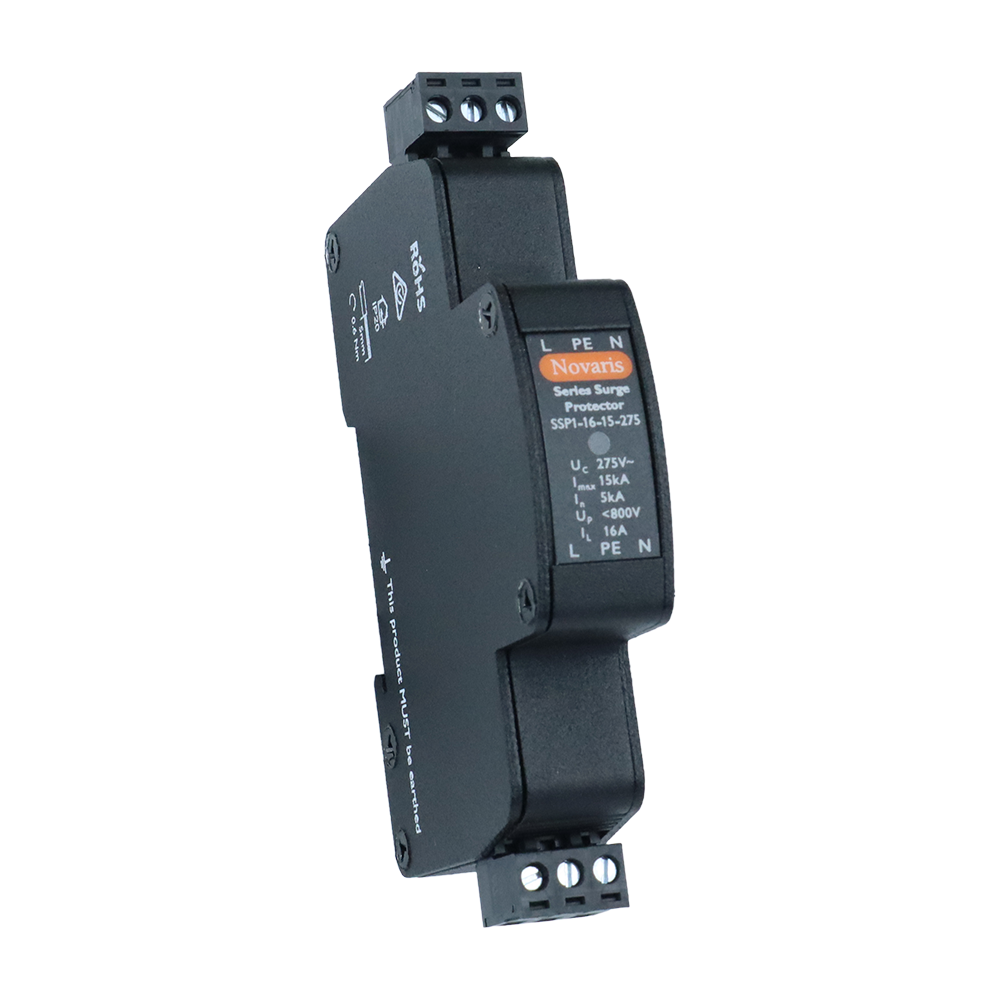

Novaris SSP1-16-15-275 Surge Protector 1 PH 16A 15kA 230VAC TS35 Panel Mounting Metal IP20

Product Code: SSP1-16-15-275

  • Protects against surges with 15 kA discharge current
  • Quick response time of <5 ns for L-N and N-PE
  • LED status display for easy monitoring
  • Compact design, fits TS35 DIN rail or panel mount
  • Complies with IEC, AS/NZS, UL, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
SSP1
Application
Economic protection to AC power circuits

Electrical

Max. Discharge Current Imax (8/20µs)
15kA (L-N)25kA (N-PE)
Nominal Discharge Current Inom (8/20µs)
5kA (L-N)10kA (N-PE)

Mechanical

Terminal Size
2.5mm²
Connection/Termination
Series

Dimensions & Physical Data

Height
115mm
Width
18mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
