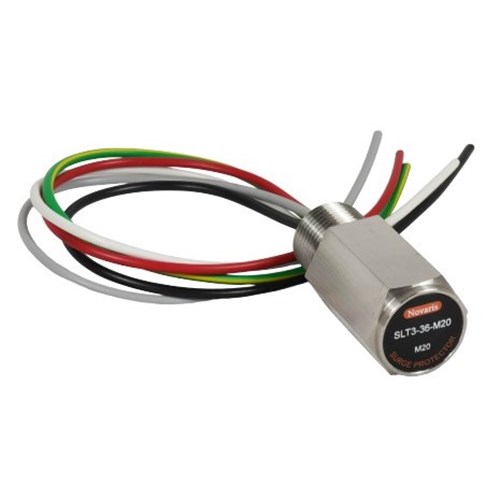

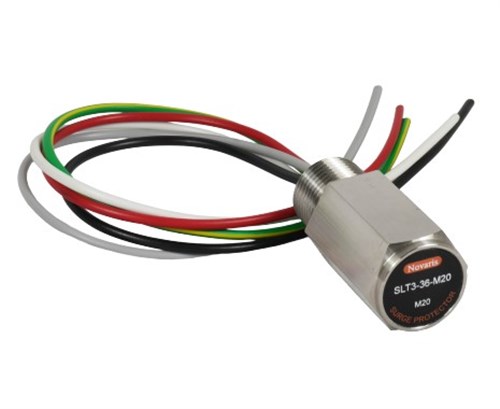

Novaris SLT3-36-M20 Threaded Signal Surge Protector 5kA 10kA 36VDC Shunt M20x1.5 Thread SS IP67

Product Code: SLT3-36-M20

  • Rated for 36 VDC, 5 kA per line
  • IP67 protection for harsh conditions
  • Quick response time under 5 ns
  • Stainless steel construction
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Threaded Signal Line Protectors
Brand
Novaris
Series
SLT3
Application
Signal, Process Control, Field Instruments

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair + center
Voltage Protection Level Up
75V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
24 V AC / 34 V DC

Dimensions & Physical Data

Depth
53mm
Height
29mm
Width
25mm

Environmental

Operating Temperature
-20°C to 40°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
