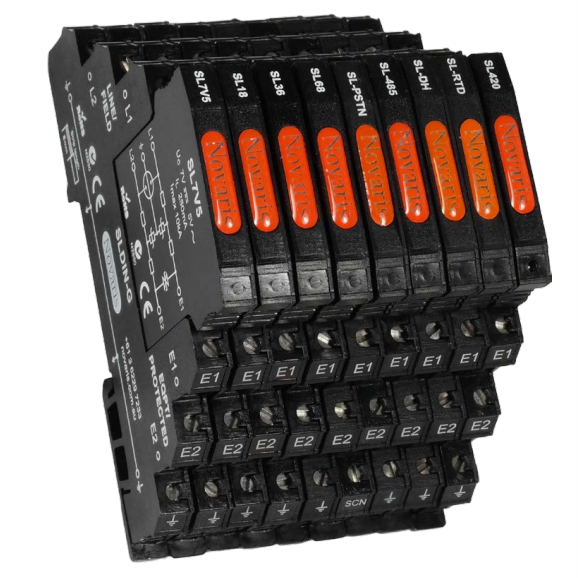

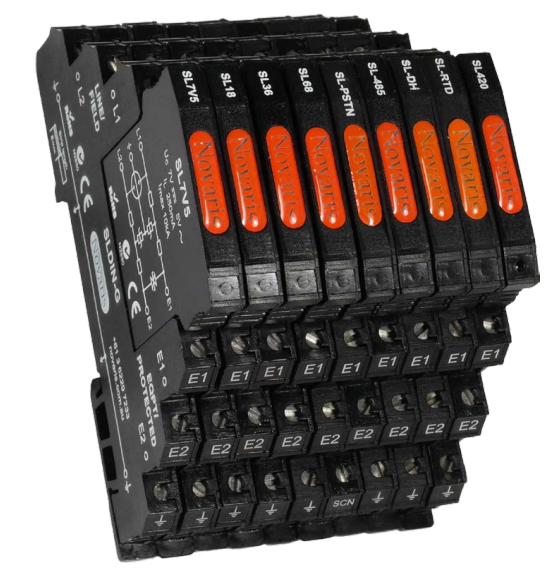

Novaris SLRTD-G Slimline Signal Line Protector With Base 5kA 10kA 3VDC TS35 102mm H IP20

Product Code: SLRTD-G

  • Surge protector with 5 kA per line capacity
  • Compact design: 7.5 mm width
  • Quick response time: <5 ns
  • Operates in -55 to 70°C environments
  • Meets IEC, AS/NZS, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Slimline Signal Line Protectors
Brand
Novaris
Series
SL
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
5 V AC / 7 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
