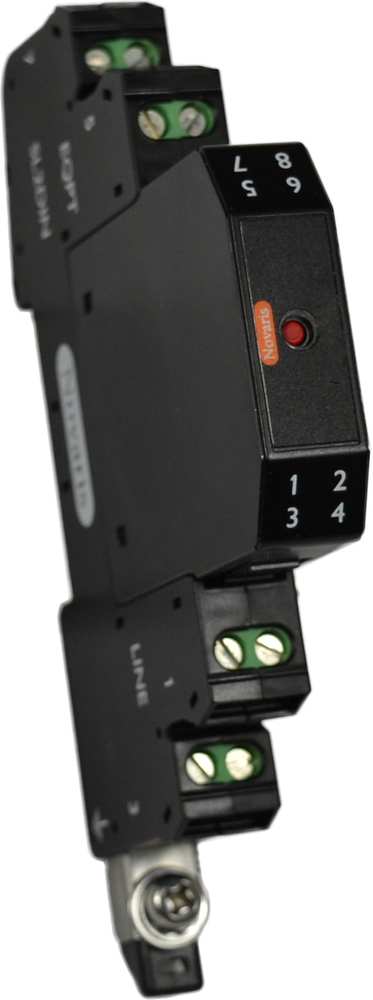

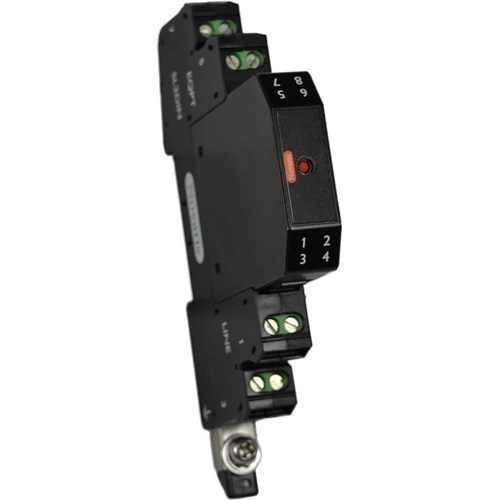

Novaris SLH2-68 Signal Surge Protection With Base and Alarm 10kA 20kA 68VDC Screw Cage TS35 IP20

Product Code: SLH2-68

  • Rated for 68 VDC, 10 kA per line surge protection
  • Compact size: 12 mm width, fits TS35 DIN rail
  • Fast response time of less than 5 ns
  • Operates in extreme temperatures from -40 to 70°C
  • Complies with IEC, AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SLH2
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
80V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
46 V AC / 65 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
