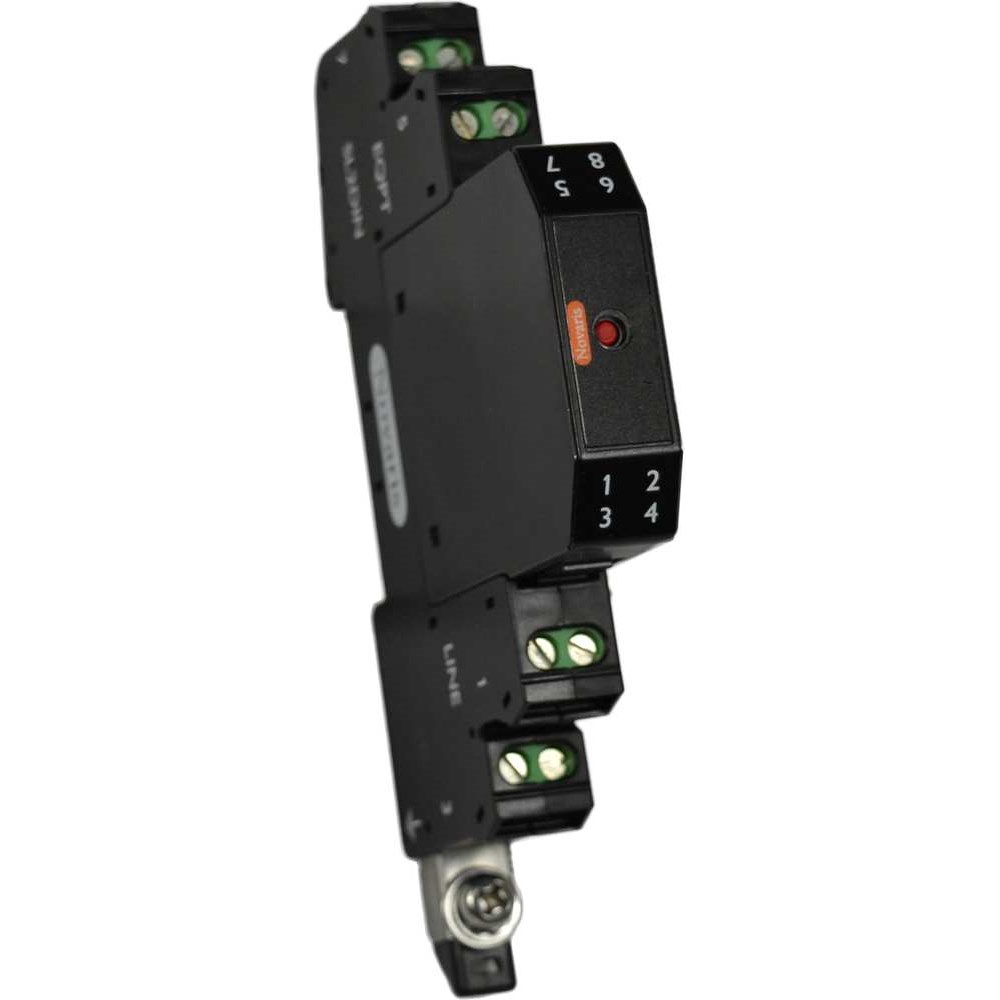

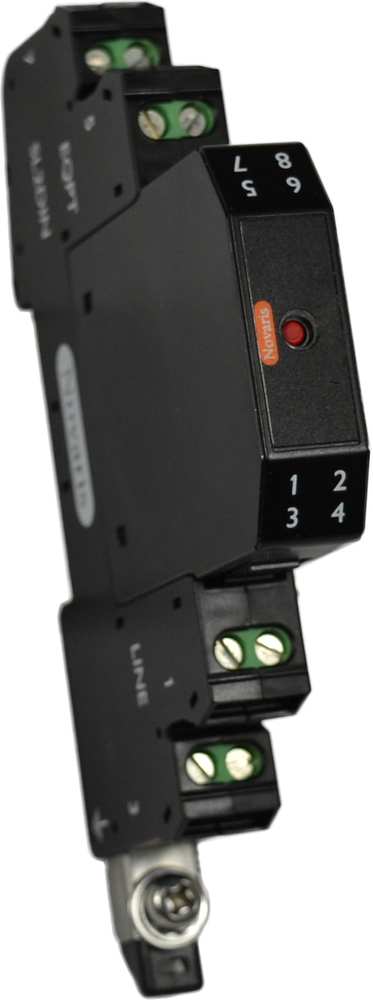

Novaris SLH2-18 Signal Surge Protection W/Base and Alarm 2.5A 12VDC

Product Code: SLH2-18

  • Surge protection for 12 VDC systems
  • Handles current up to 2.5 A
  • Suitable for single pair lines
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SLH2
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
30V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
11 V AC / 16 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
