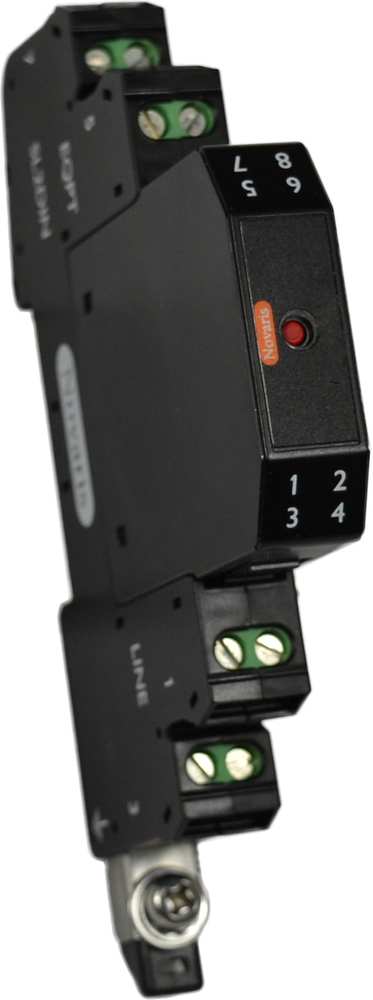

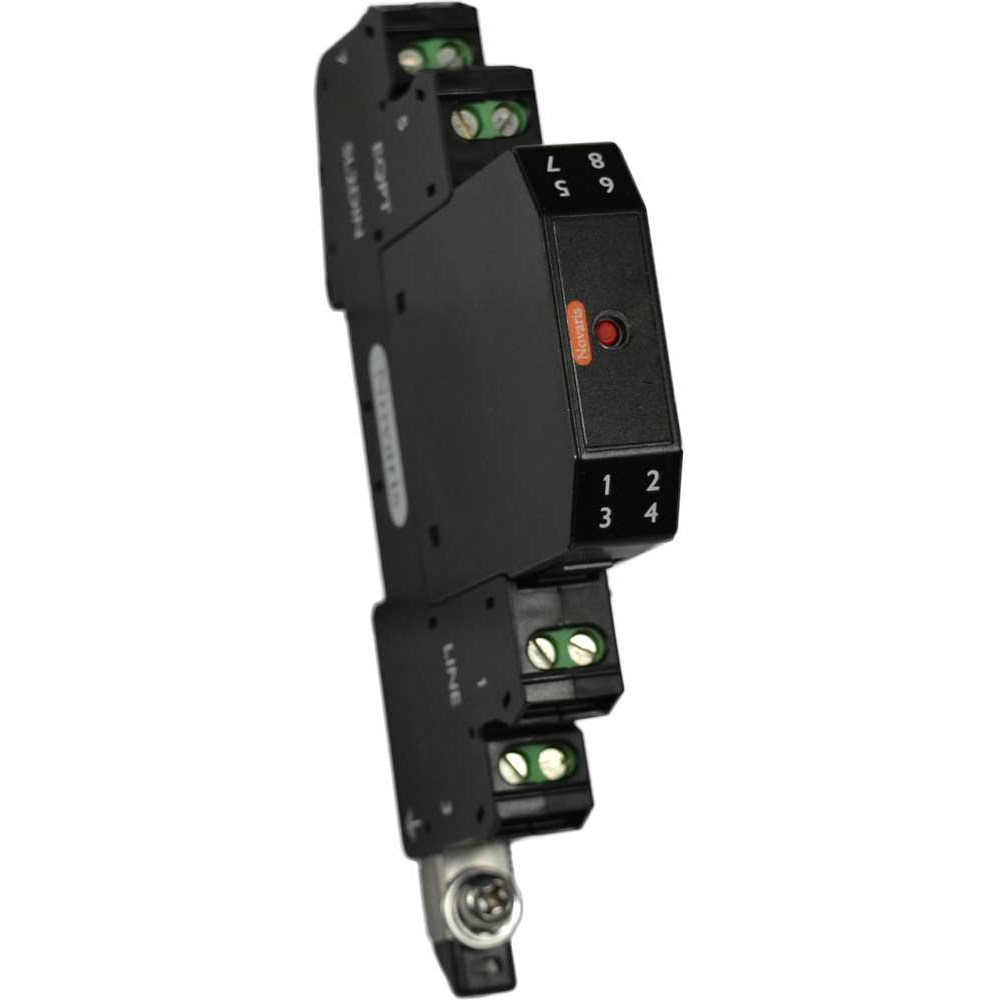

Novaris SLH2-130 Signal Surge Protection W/Base and Alarm 2.5A 155VDC

Product Code: SLH2-130

  • Protects against transverse & common mode surges
  • Compact design: 12mm width, 71mm height
  • Suitable for 155 VDC applications
  • Handles up to 2.5 A current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SLH2
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
300V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
110 V AC / 155 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
