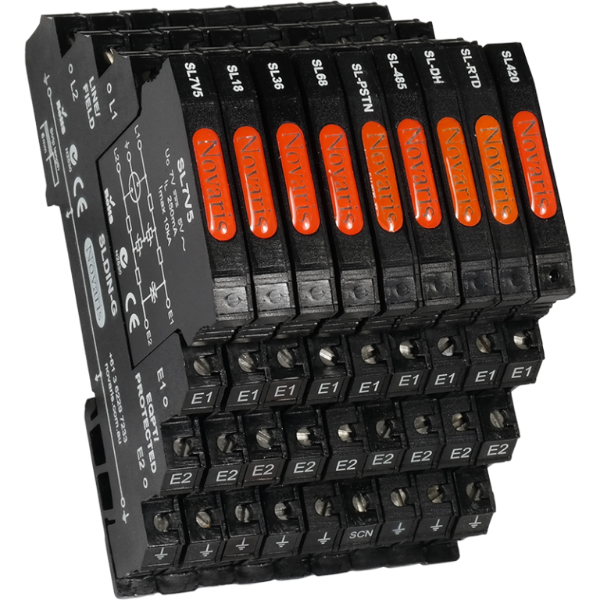

Novaris SL68-G Slimline Signal Line Protector 5kA 10kA 65VDC Screw Cage TS35 102mm H IP20

Product Code: SL68-G

  • Protects signal lines up to 65 VDC
  • Handles 5 kA per line, 10 kA common mode
  • Compact design: 7mm width, IP20 rated
  • Quick response time of <5 ns
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Slimline Signal Line Protectors
Brand
Novaris
Series
SL
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
80V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
46 V AC / 65 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
