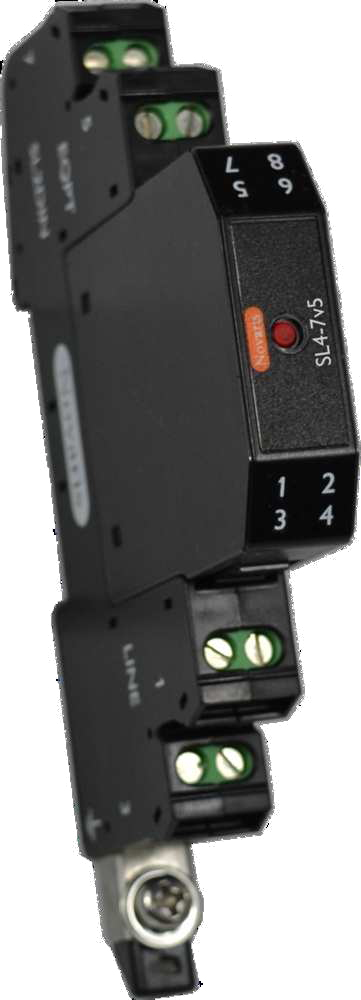

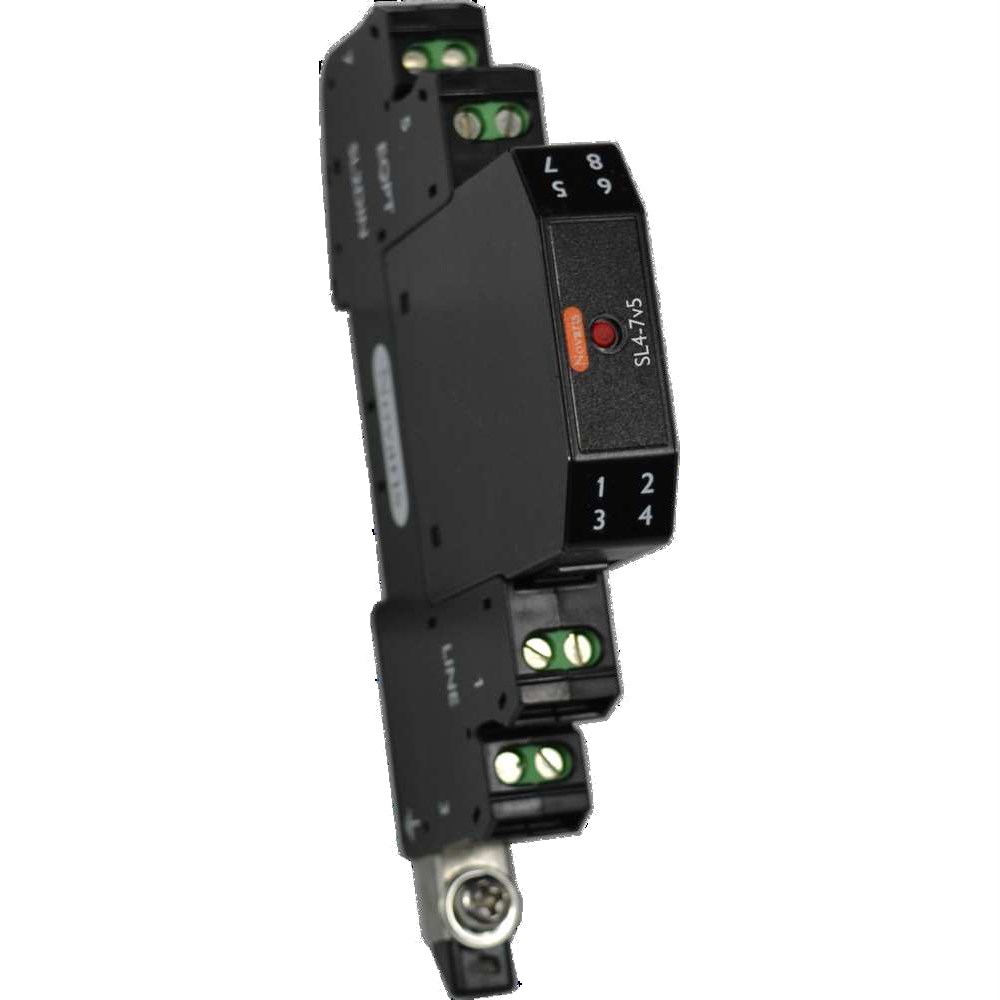

Novaris SL4-7V5 Signal Surge Protection With Base 10kA 20kA 7VDC Screw Cage TS35 IP20

Product Code: SL4-7V5

  • Surge protector for 7 VDC applications
  • Handles 10 kA per line, 20 kA common mode
  • Compact design: 12 mm width
  • Quick response time <5 ns
  • Mounts on TS35 DIN Rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SL4
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
2 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
5 V AC / 7 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
