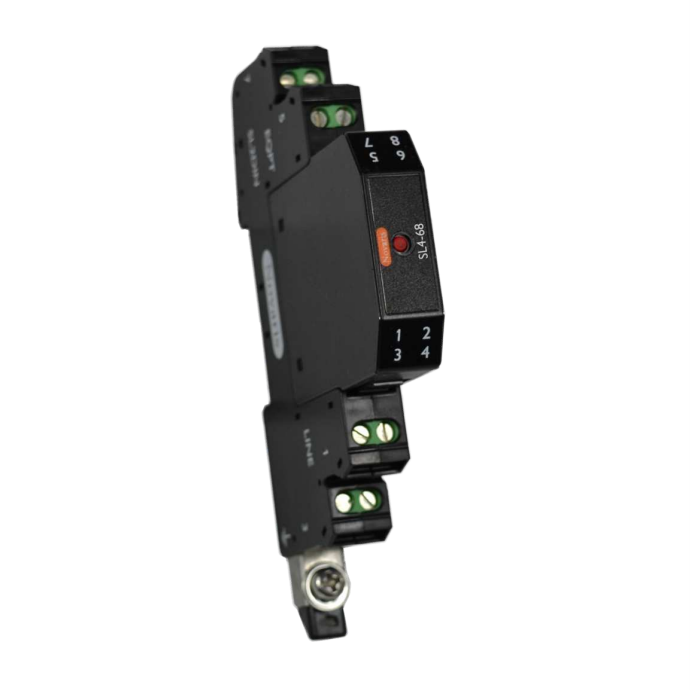

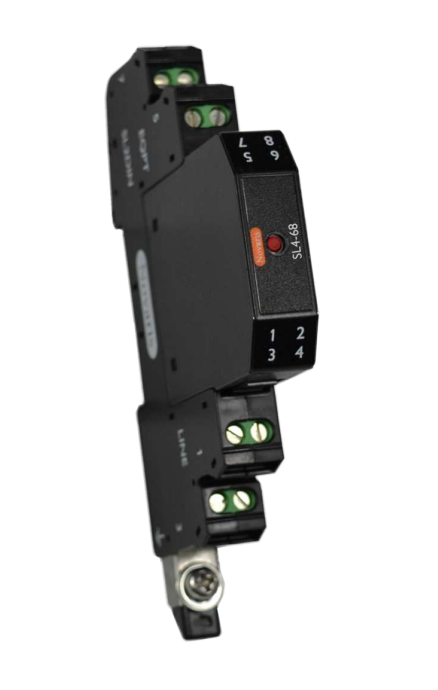

Novaris SL4-68 Signal Surge Protection With Base 10kA 20kA 65VDC Screw Cage TS35 IP20

Product Code: SL4-68

  • Surge protector for 65 VDC systems
  • Handles 10 kA per line, 20 kA common mode
  • Compact design: 12 mm wide, DIN rail mount
  • Fast response time under 5 ns
  • Complies with IEC and AS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SL4
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
2 pair
Voltage Protection Level Up
80V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
46 V AC / 65 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
