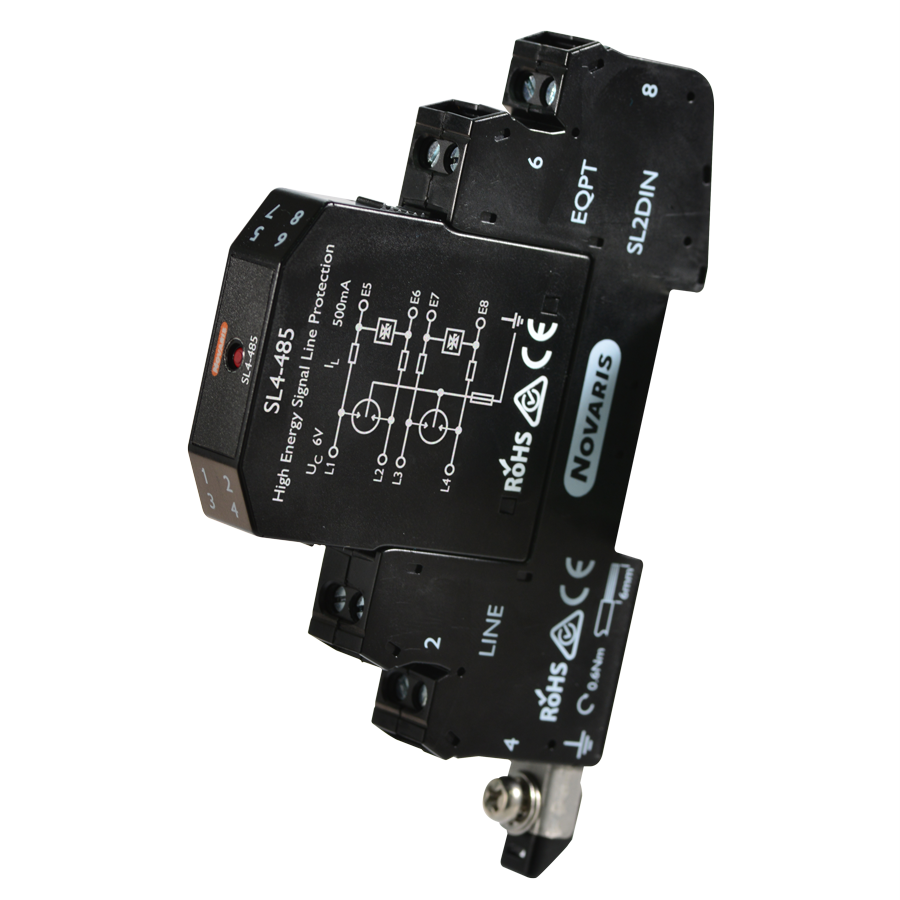

Novaris SL4-485 Surge Protection 10kA 20kA 8VDC Screw Cage TS35 IP20

Product Code: SL4-485

  • Protects 2 pairs with transverse & common modes
  • Fast response time of <5 ns for optimal protection
  • Rated for 10 kA per line, 20 kA common mode current
  • Compact design: 12 mm width; mounts on TS35 DIN rail
  • Complies with IEC, AS/NZS, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
SL
Application
PLCs, fire and security systems,telecommunications and telemetry systems, railway signalling, SCADA andother industrial monitoring and control equipment

Electrical

Max. Discharge Current Imax (8/20µs)
10kA

Mechanical

Connection/Termination
Series

Dimensions & Physical Data

Depth
71mm
Height
110mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
