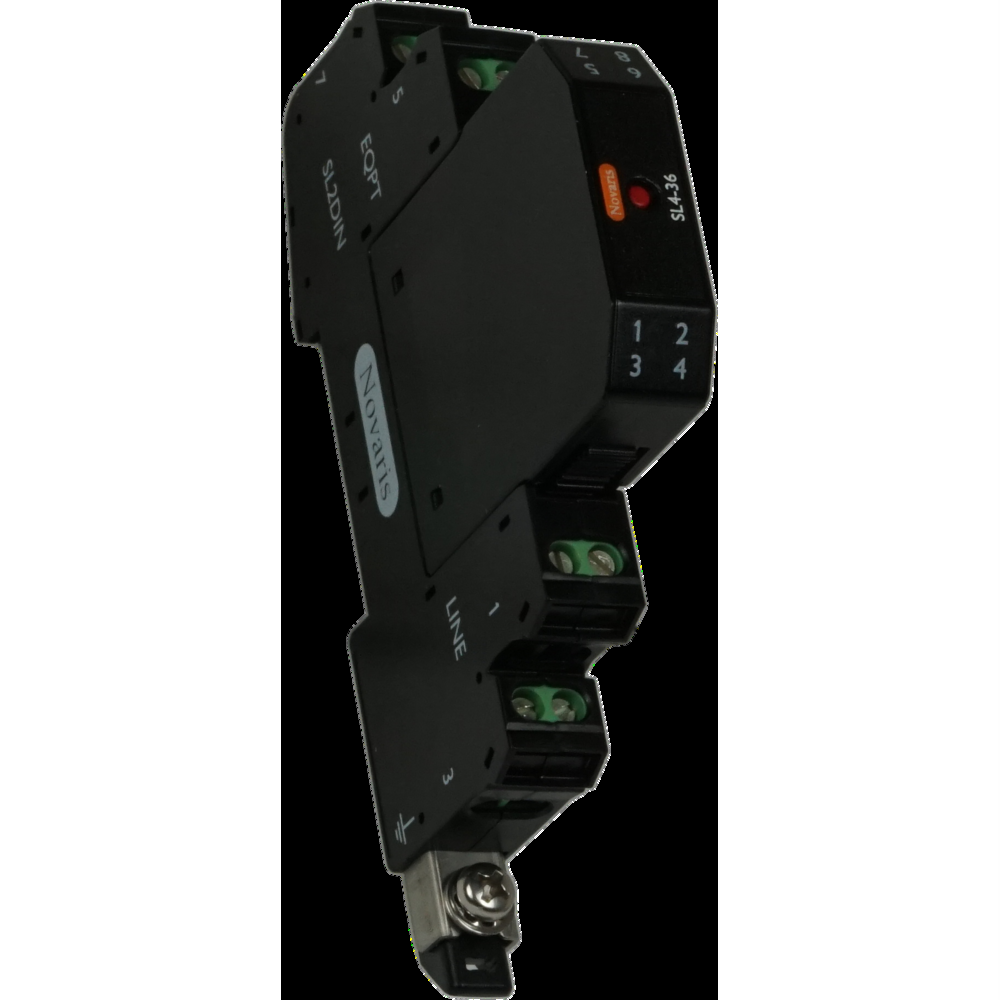

Novaris SL4-36 Signal Surge Protection With Base 10kA 20kA 34VDC Screw Cage TS35 IP20

Product Code: SL4-36

  • Protects against surge up to 20 kA (Common Mode)
  • Quick response time of less than 5 ns
  • Compact design, only 12 mm wide
  • Easy installation on TS35 DIN Rail
  • Complies with IEC 61643-21 and other standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SL4
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
2 pair
Voltage Protection Level Up
40V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
24 V AC / 34 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
