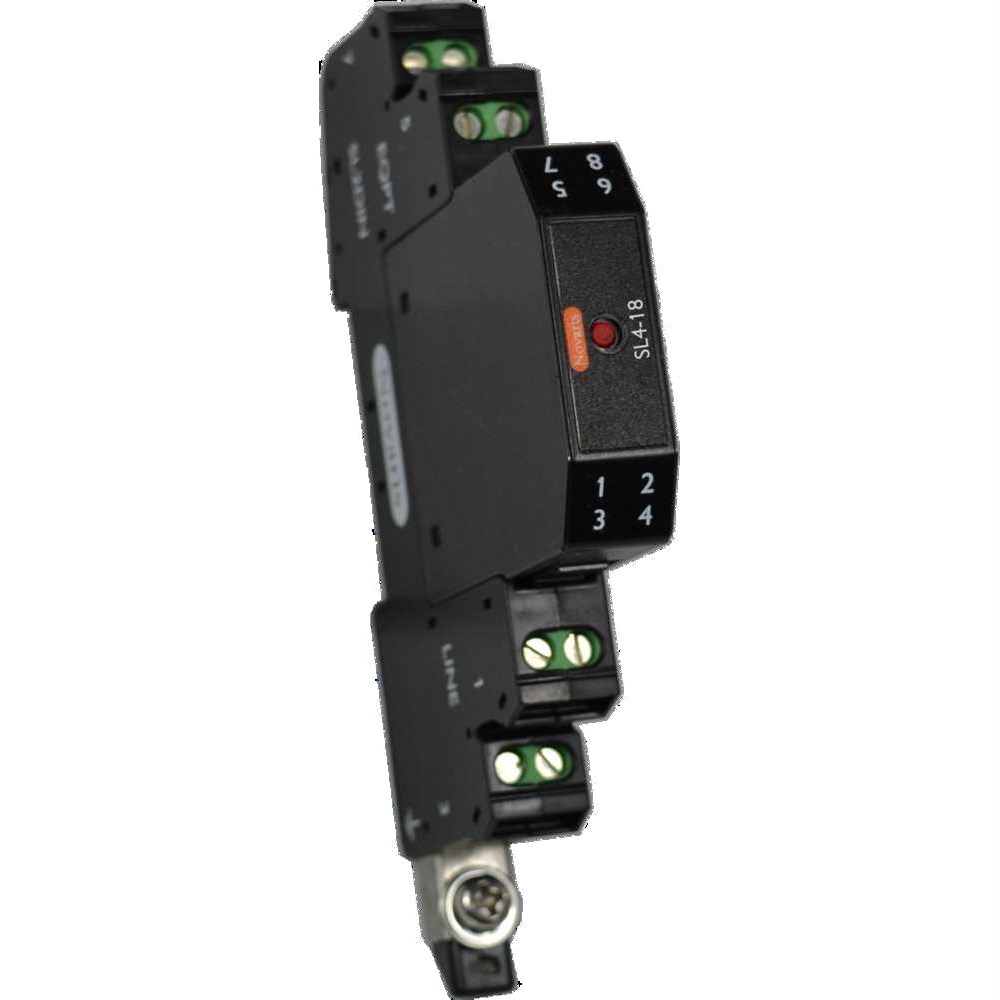

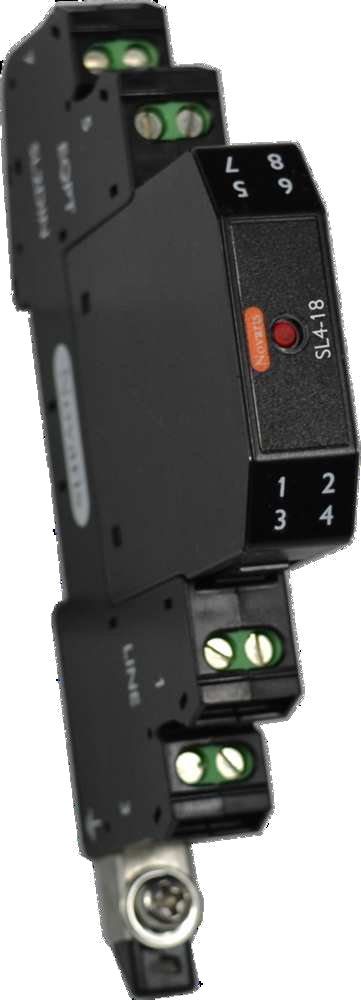

Novaris SL4-18 Signal Surge Protection With Base 10kA 20kA 16VDC Screw Cage TS35 IP20

Product Code: SL4-18

  • Rated for 16 VDC, 10 kA per line
  • Compact size: 12 mm width
  • Fast response time <5 ns
  • IP20 protection, screw cage connection
  • Mounts on TS35 DIN rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Energy Signal Line Protection
Brand
Novaris
Series
SL4
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5kA
No. of Lines/Pairs
2 pair
Voltage Protection Level Up
30V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
11 V AC / 16 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
