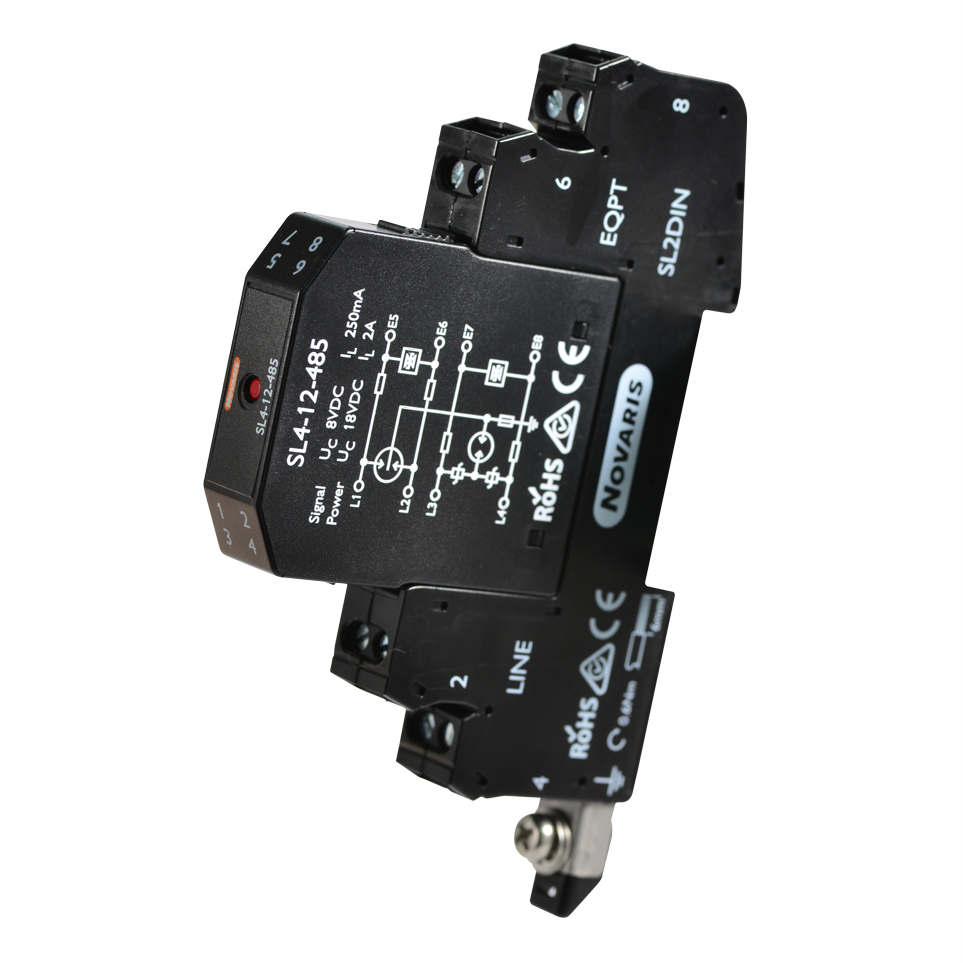

Novaris SL4-12-485 Signal and Power Surge Protection 4.8kA 20kA 12V 6V Screw Cage TS35 IP20

Product Code: SL4-12-485

  • Compact design: 12mm width, ideal for tight spaces
  • High surge capacity: 4.8kA power, 20kA signal
  • Fast response time: less than 5 nanoseconds
  • Robust protection: IP20 rated polycarbonate body
  • Easy installation on TS35 DIN rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combine Signal Line And Power Protector
Brand
Novaris
Series
SLC
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
5kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V, 45V
Max. Discharge Current Imax (8/20µs)
10kA
Max. Continuous Operating Voltage
6 V , 12 V AC / 8 V , 18 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
110mm
Height
71mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
