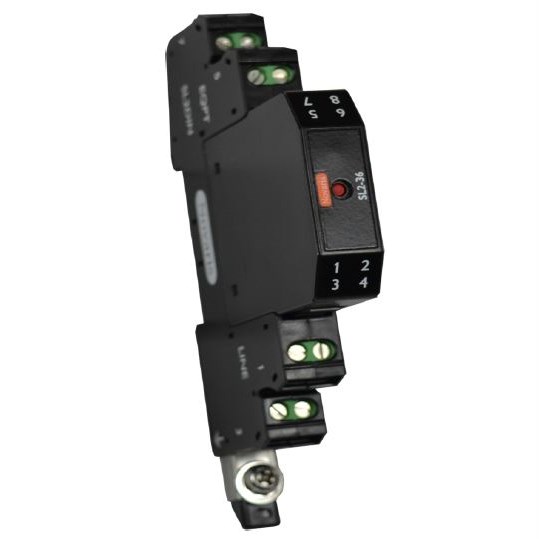

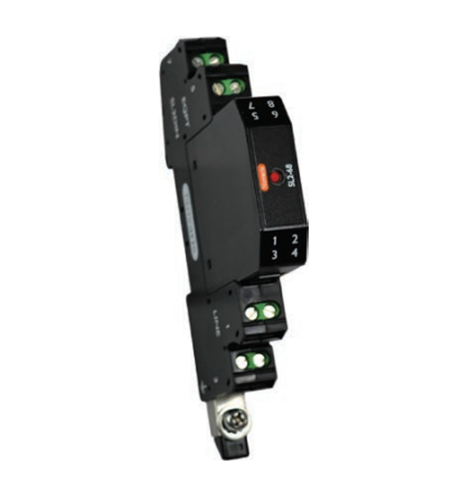

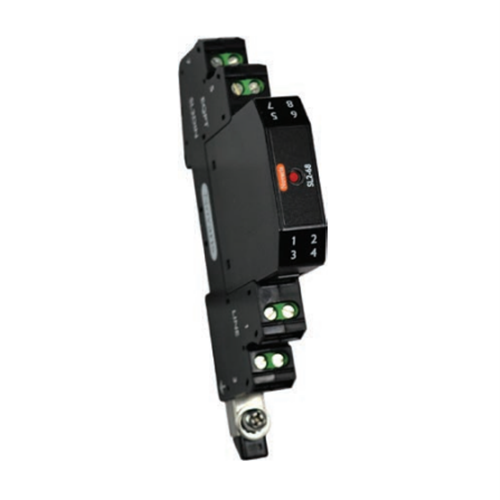

Novaris SL2-36 Signal Surge Protection With Base and Alarm Output 10kA 20kA 34VDC Screw Cage TS35 IP20

Product Code: SL2-36

  • Surge protector with 34 VDC rating
  • Handles up to 20 kA common mode current
  • Screw cage connection, IP20 protection
  • Compact design: 12 mm width, TS35 DIN rail mount
  • Fast response time of <5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
Novaris
Series
SL
Application
PLCs, fire and security systems,telecommunications and telemetry systems, railway signalling, SCADA andother industrial monitoring and control equipment

Electrical

Max. Discharge Current Imax (8/20µs)
10kA
Alarm Contact
Impulse overload current and thermal

Mechanical

Connection/Termination
Series

Dimensions & Physical Data

Depth
71mm
Height
110mm
Width
12mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
