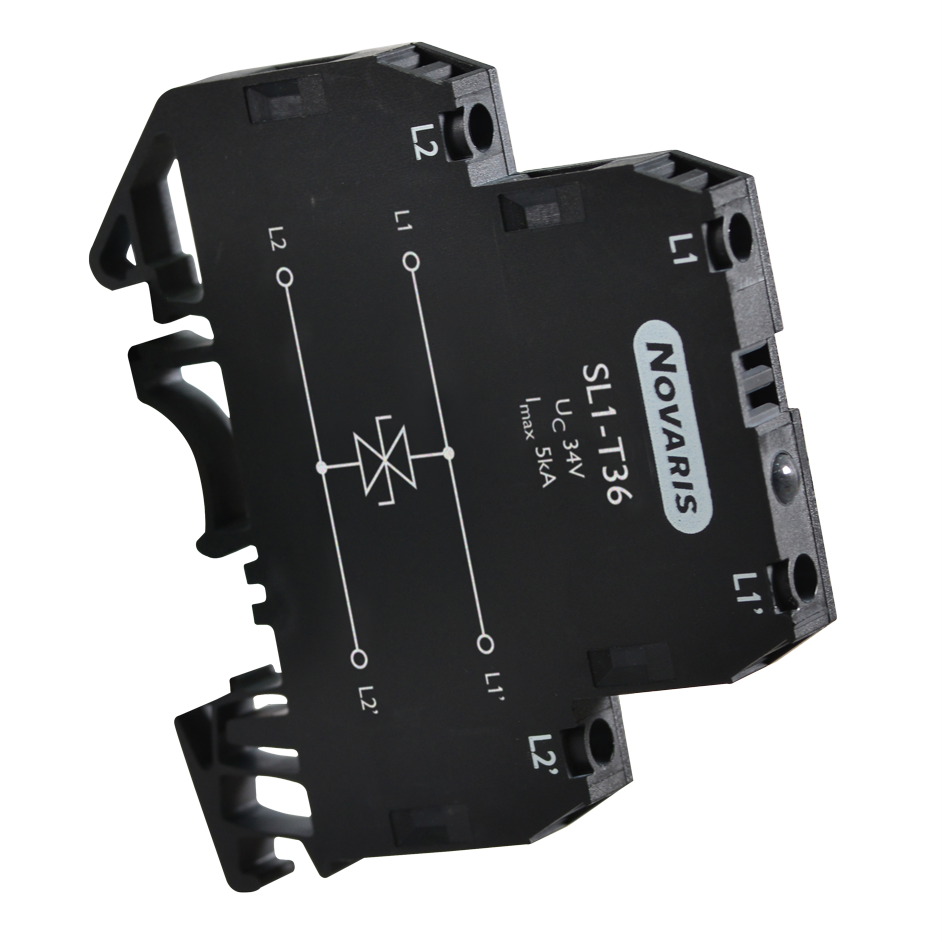

Novaris SL1-T36 Slimline Signal Line Protector 5kA 10kA 34VDC Screw Cage Universal TS32/TS35 Rail Mount 62mm H IP20

Product Code: SL1-T36

  • Rated for 34 VDC, 5 kA per line
  • IP20 protection with screw cage connection
  • Fits TS32/TS35 rail, compact 6 mm width
  • Fast response time under 5 ns
  • Complies with IEC 61643-21 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sl1 - T Signal Surge Protector
Brand
Novaris
Series
SL1
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 line
Voltage Protection Level Up
50V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
24 V AC / 34 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
68mm
Height
62mm
Width
6mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
