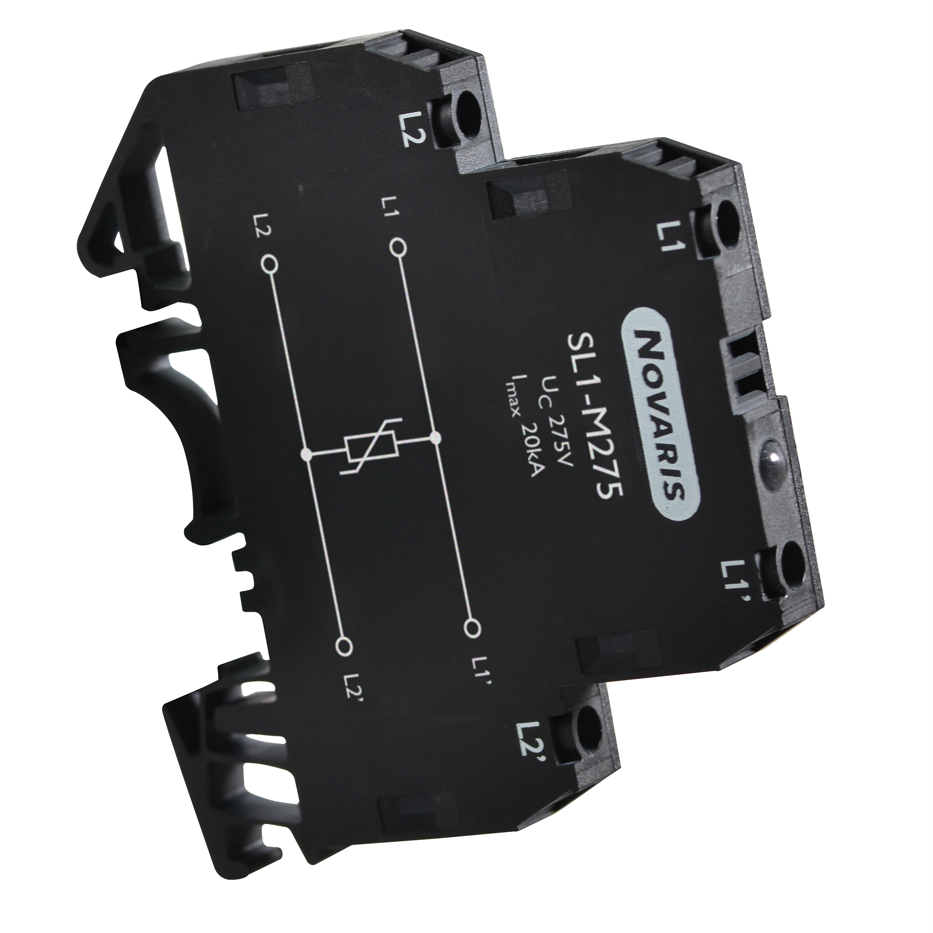

Novaris SL1-M275 Slimline Signal Line Protector 3kA 275V

Product Code: SL1-M275

  • Rated for 275V applications
  • Handles up to 3kA current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sl1 - M Surge Protector
Brand
Novaris
Series
SL1
Application
Signal, Process Control, Input / Output / Comms

Electrical

Nominal Voltage
230V AC
Voltage Protection Level Up
800V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
275 V AC / 350 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
68mm
Height
62mm
Width
6mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
