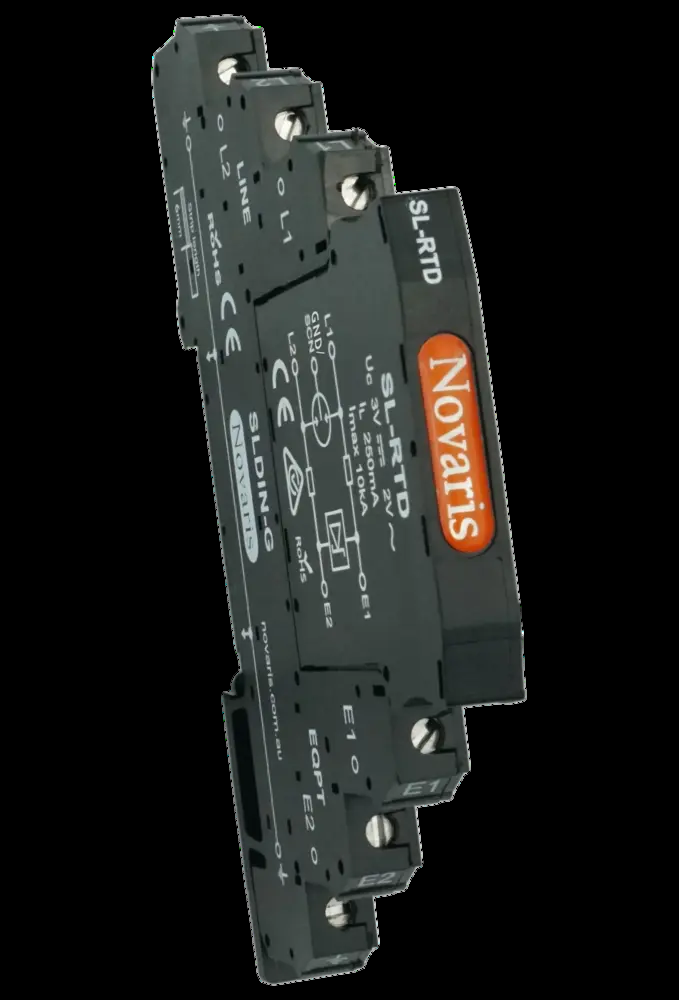

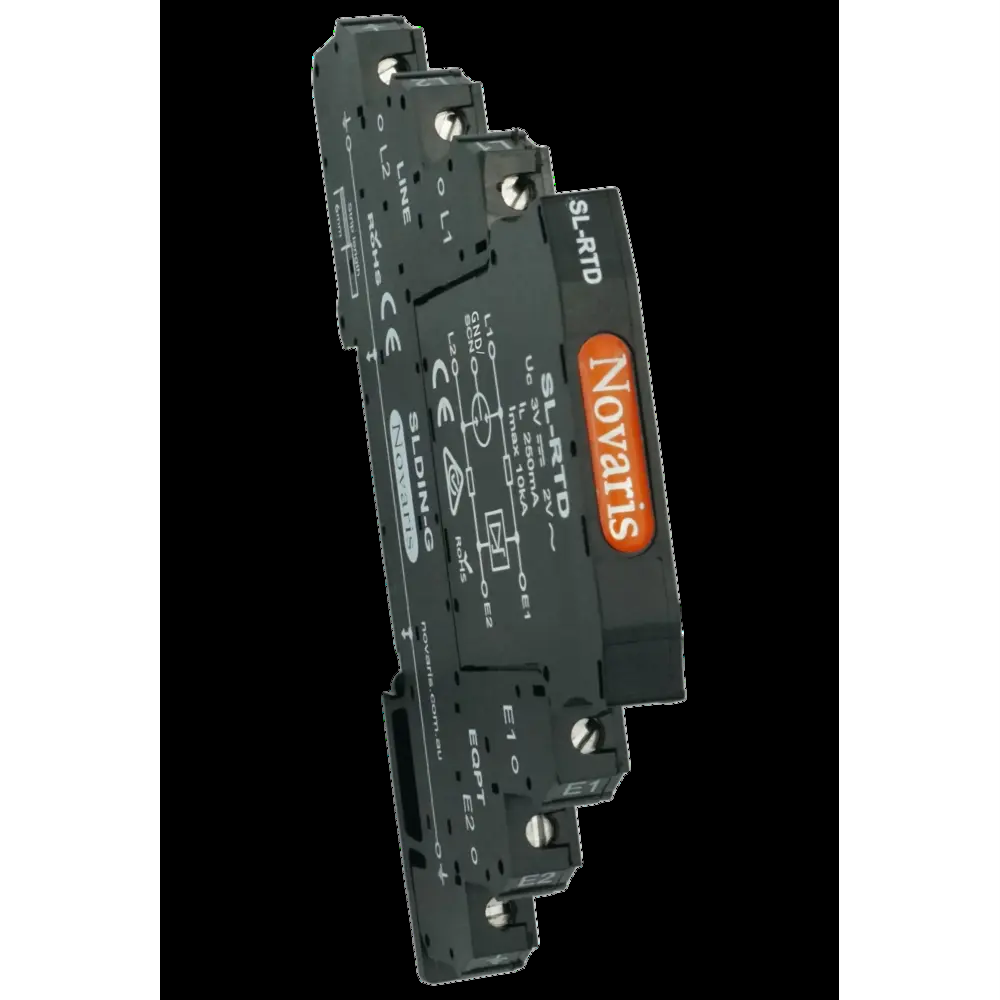

Novaris SL-RTD-G Slimline Surge Protector 5kA 10kA 3VDC Screw Cage TS35 IP20

Product Code: SL-RTD-G

  • Protects with 5 kA per line, 10 kA common mode
  • Compact size: 7 mm width, mounts on TS35 DIN rail
  • Fast response time under 5 ns
  • Operates in extreme temps: -55 to 70°C
  • Complies with IEC & AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Slimline Signal Line Protectors
Brand
Novaris
Series
SL
Application
Signal, Process Control, Input / Output / Comms

Electrical

Lightning Impulse Current Iimp (10/350µs)
1.25kA
No. of Lines/Pairs
1 pair
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
5kA
Max. Continuous Operating Voltage
5 V AC / 7 V DC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
102mm
Height
68mm
Width
7mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
