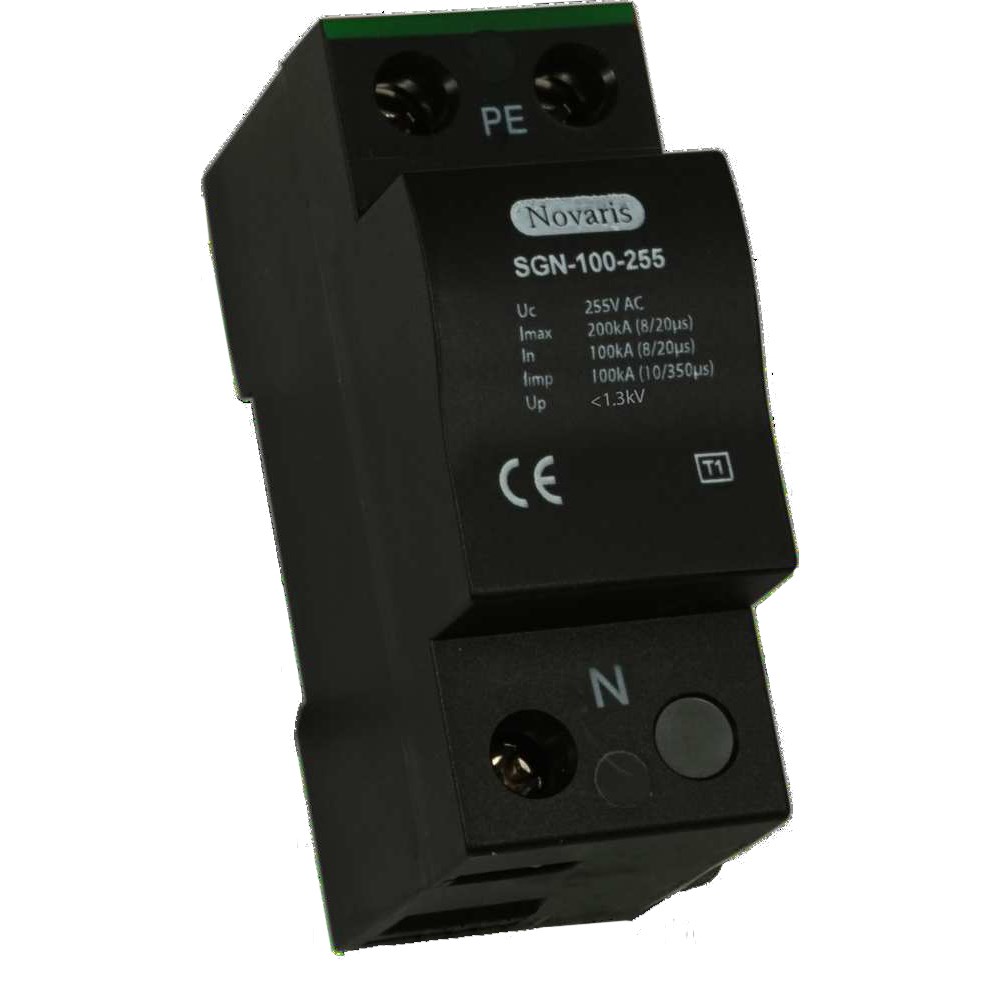

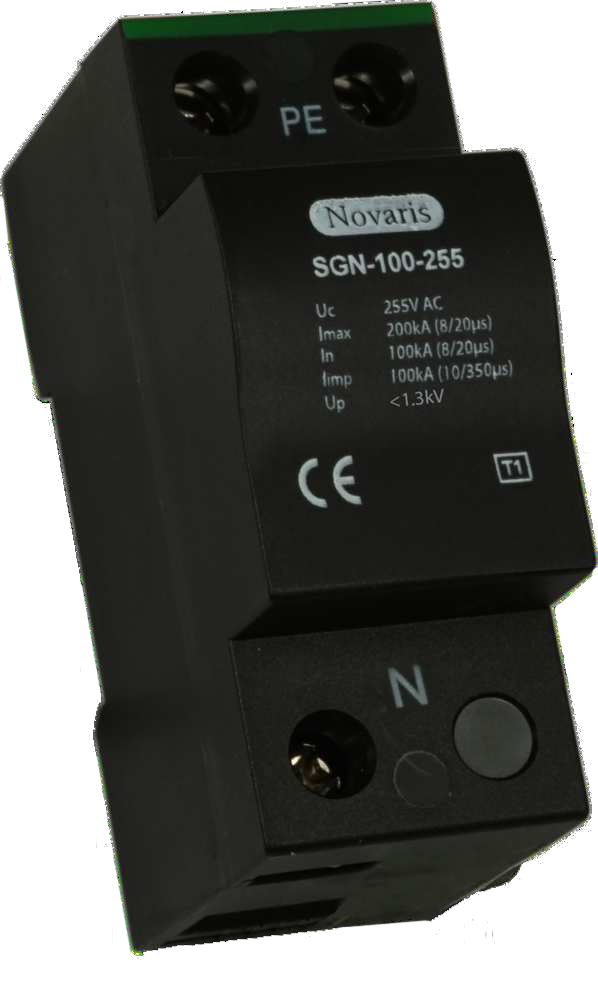

Novaris SGN-100-255 Spark Gap Arrester 50kA 255VAC Shunt 36mm W 91mm D 67mm H Thermoplastic Textured Black IP20

Product Code: SGN-100-255

  • Surge protection up to 50 kA discharge current
  • Compact size: 36mm wide, 67mm high, 91mm deep
  • Durable thermoplastic construction
  • IP20 rated for basic protection
  • Textured black finish for sleek appearance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Spark Gap Surge Diverter
Brand
Novaris
Series
SG1
Application
Power, Main Switchboards, Commercial and Industrial (Highly Exposed)

Electrical

Lightning Impulse Current Iimp (10/350µs)
100kA
Max. Backup Fuse
500A
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
150kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
100kA
Max. Continuous Operating Voltage
255 V AC

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
91mm
Height
67mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
