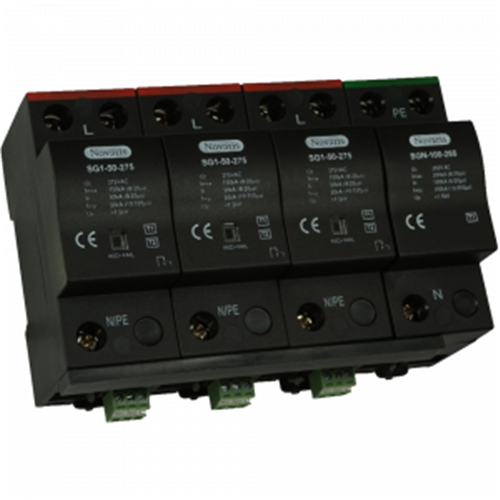

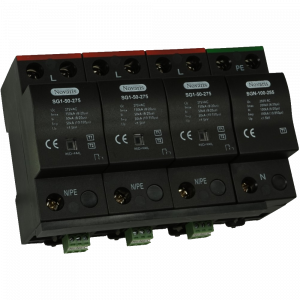

Novaris SG1-50-275 Spark Gap Surge Diverter 1 PH 150kA 275VAC Shunt TS35 Polycarbonate IP20

Product Code: SG1-50-275

  • Suitable for 275 VAC, 150 kA applications
  • IP20 protection with shunt connection
  • Mounts easily on TS35 DIN Rail
  • Fast response time of 100 ns
  • Operates in -40 to 80°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Spark Gap Surge Diverter
Brand
Novaris
Series
SG1
Application
Power, Main Switchboards, Commercial and Industrial (Highly Exposed)

Electrical

Lightning Impulse Current Iimp (10/350µs)
50kA
Max. Backup Fuse
500A
Nominal Voltage
230V AC
Voltage Protection Level Up
1300V
Max. Discharge Current Imax (8/20µs)
150kA
Short Circuit Current Rating
25kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
50kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Depth
91mm
Height
67mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
