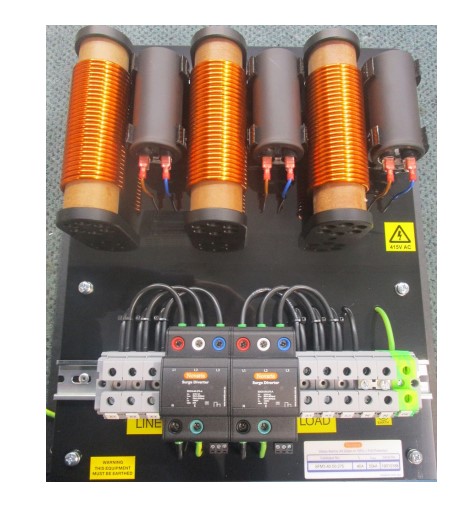

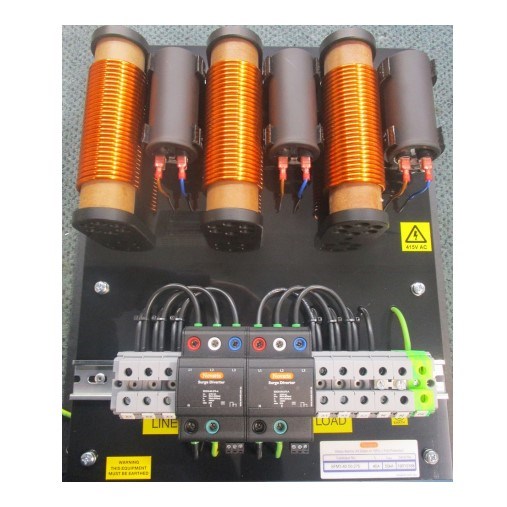

Novaris SFM3-40-50-275 Surge Filter 6.25kA 3 PH 40A 230VAC Panel Mount IP20

Product Code: SFM3-40-50-275

  • Surge filter for 230 VAC, 40 A, 3-phase systems
  • LED display for power and thermal failure alerts
  • IP20 rated for panel mounting applications
  • Operates in -40 to 70°C with humidity 5-95%
  • Complies with IEC 61643-11:2011 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Medium Current Filter
Brand
Novaris
Series
SFM3
Application
Power, Distribution Boards and Domestic MSB, Critical Installations up to 125 A per phase

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Max. Backup Fuse
40A
Max. Load Current
40A
No. of Phases
3
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
360V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
50kA
Alarm Contact
SPST NC power and thermal failure
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
