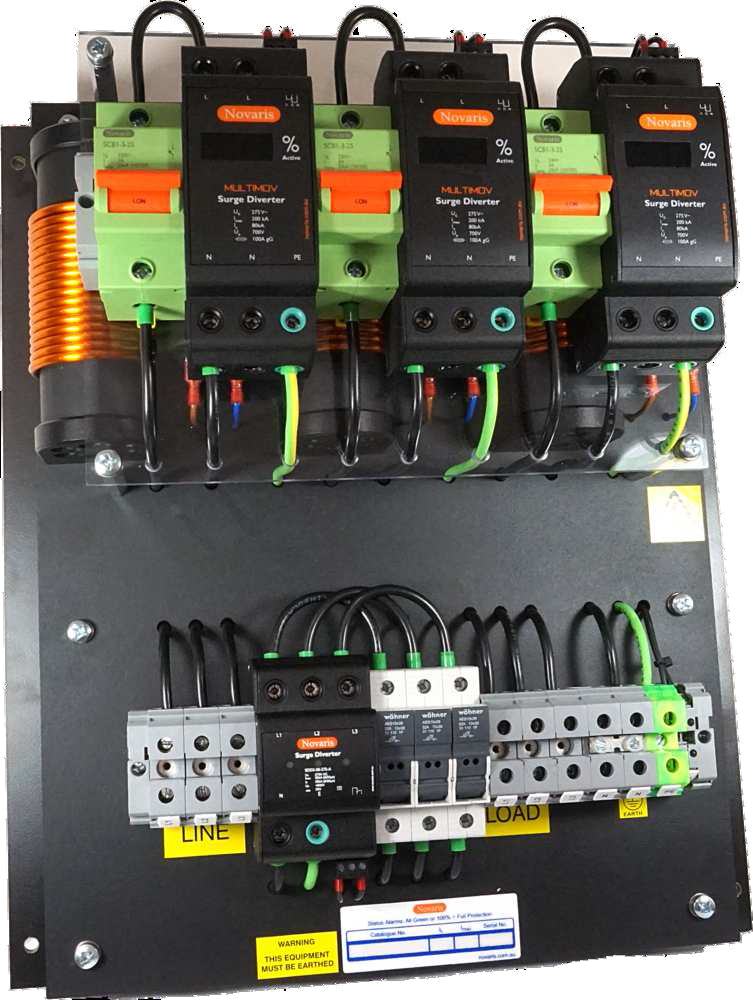

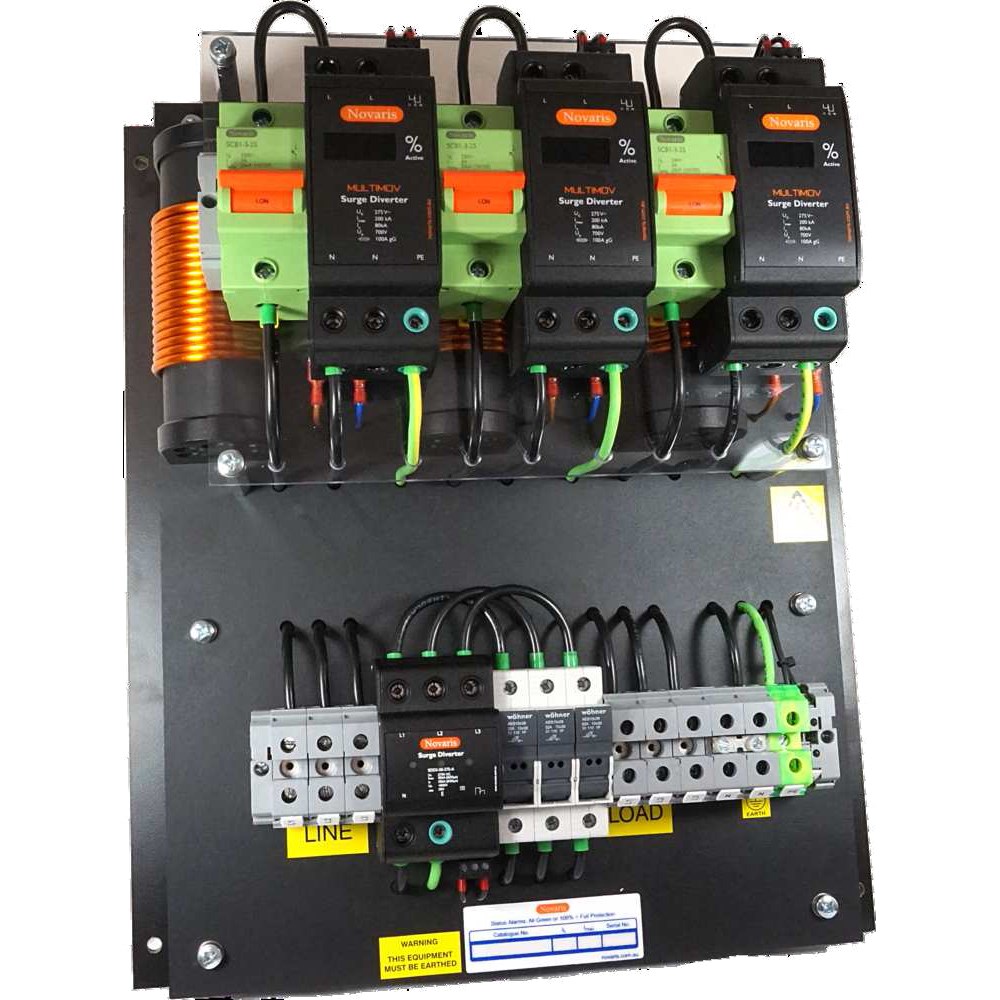

Novaris SFM3-40-200-275 Surge Filter 25kA 3 PH 40A 230VAC Panel Mount IP20

Product Code: SFM3-40-200-275

  • Surge protection for 3-phase systems
  • LED display for power and thermal issues
  • Complies with IEC 61643-11:2011 standards
  • Operates in extreme temperatures (-40 to 70°C)
  • Protects against lightning up to 25 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Medium Current Filter
Brand
Novaris
Series
SFM3
Application
Power, Main Switchboards, Critical installations up to 125 A per phase

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
40A
Max. Load Current
40A
No. of Phases
3
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
360V
Max. Discharge Current Imax (8/20µs)
200kA
Short Circuit Current Rating
50kA
Alarm Contact
SPST NC power and thermal failure
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
