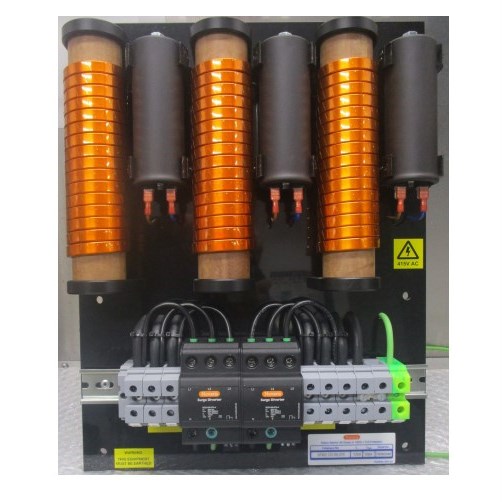

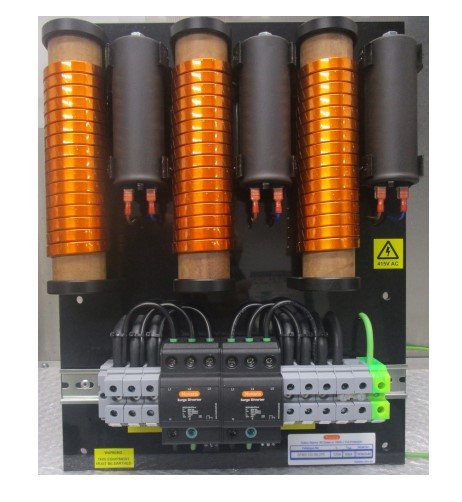

Novaris SFM3-125-50-275 Surge Filter 6.25kA 3-P 3 PH 125A 230VAC Panel Mounting IP20

Product Code: SFM3-125-50-275

  • 3-phase surge filter for 230 VAC systems
  • LED display for power & thermal failure
  • Protects with L-N, L-PE, N-PE modes
  • Rated short circuit current of 50 kA
  • Complies with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Filter
Brand
Novaris
Series
SFM3
Application
Critical installations, sensitive electronics and computer equipment

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)50kA (N-PE)
Max. Backup Fuse
125A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPST NC
Nominal Discharge Current Inom (8/20µs)
50kA (N-PE)20kA (L-N)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 35mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
190mm
Height
450mm
Width
390mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
