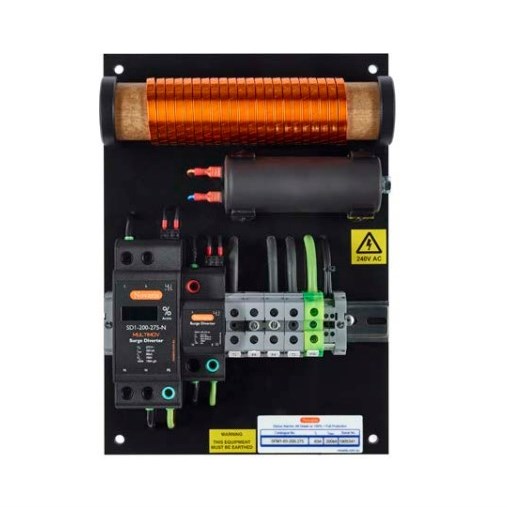

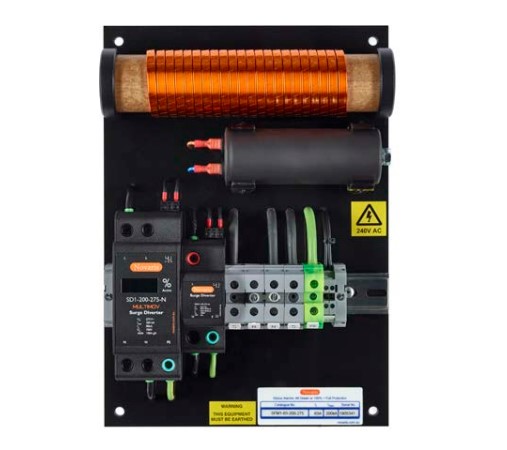

Novaris SFM1-63-200-275 Surge Filter 1 PH 63A 230VAC Panel Mount IP20

Product Code: SFM1-63-200-275

  • 230 VAC, 63 A single-phase surge filter
  • LED display for power and thermal alerts
  • Protects L-N, L-PE, N-PE modes
  • Complies with IEC 61643-11:2011 standards
  • Rated short circuit current of 50 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Filter
Brand
Novaris
Series
SFM1
Application
Critical installations, sensitive electronics and computer equipment

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA (L-N)100kA (N-PE)
Max. Backup Fuse
63A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
200kA
Alarm Contact
SPST NC
Nominal Discharge Current Inom (8/20µs)
80kA (L-N)100kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 35mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
110mm
Height
344mm
Width
284mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
