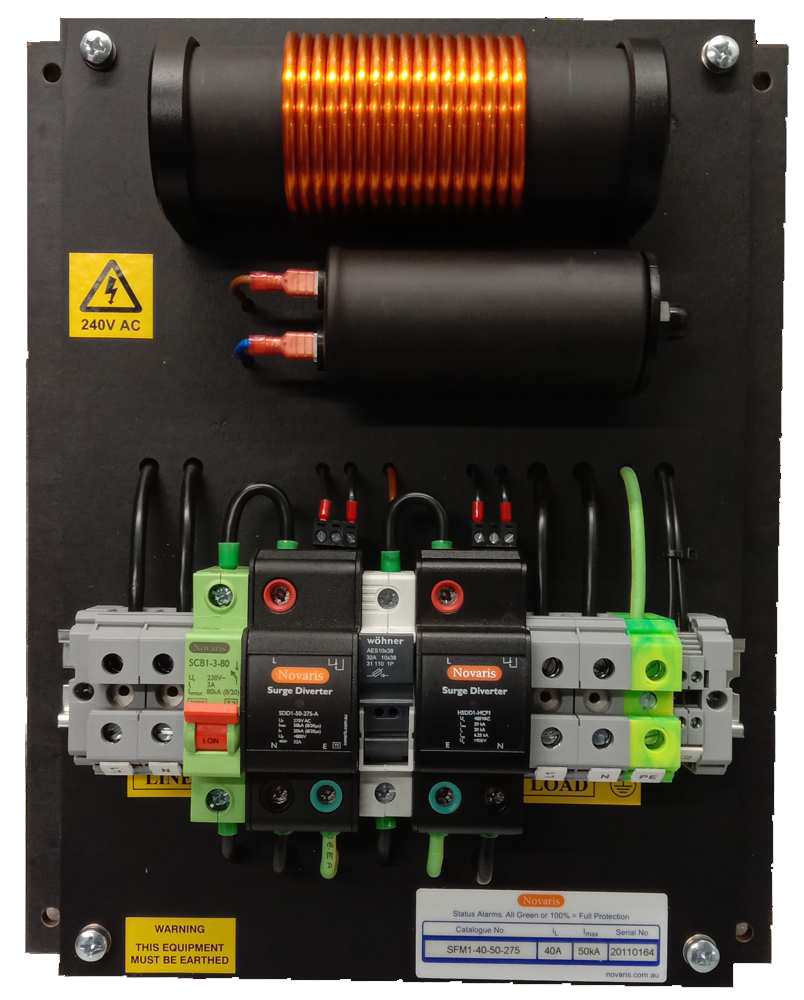

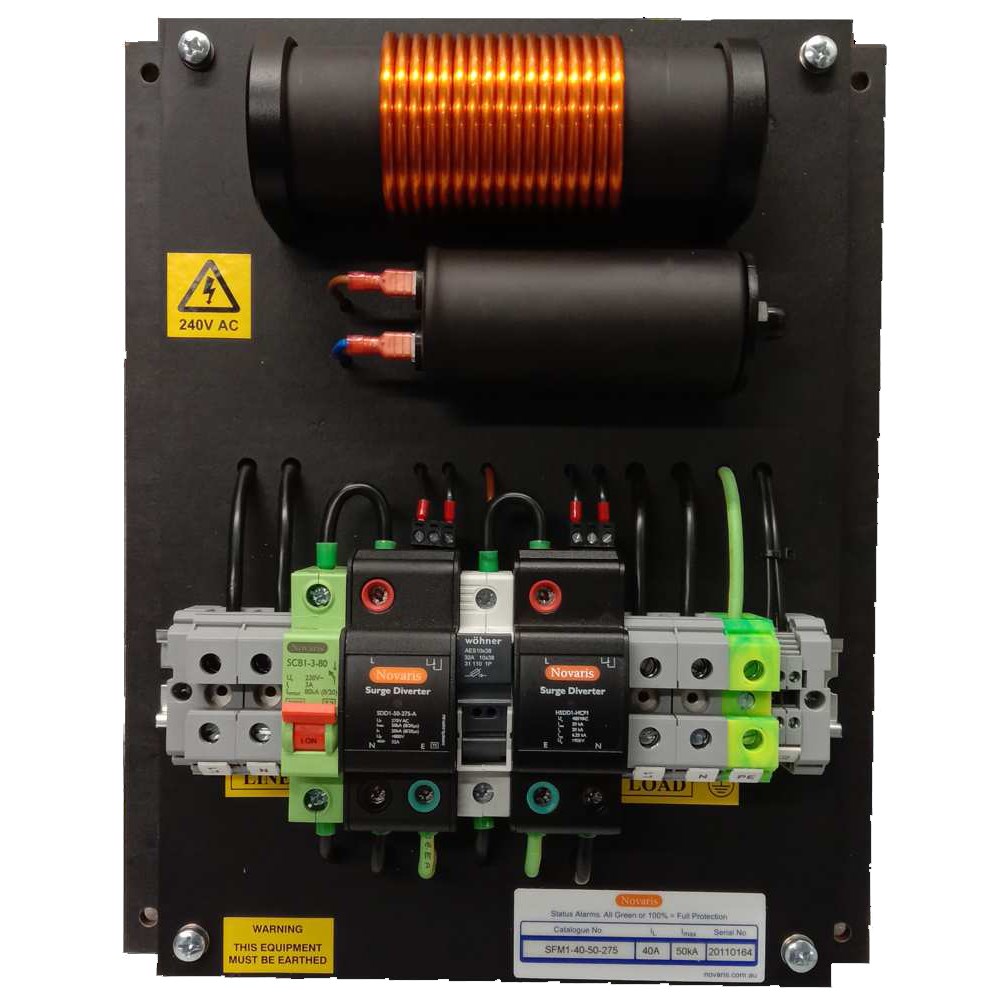

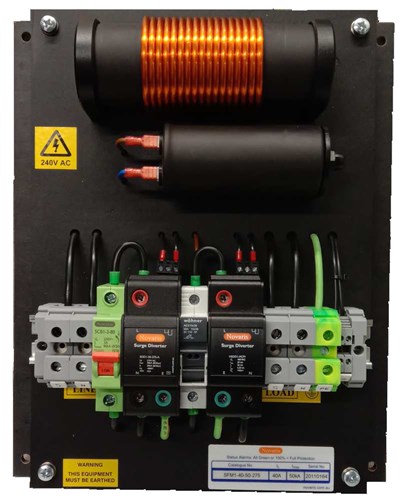

Novaris SFM1-40-50-275 Surge Filter 6.25kA 1 PH 50kA 230VAC Panel Mounting IP20

Product Code: SFM1-40-50-275

  • Surge protection for 230 VAC systems
  • Handles up to 50 kA current (L-N)
  • LED display for power & thermal status
  • Compact panel mount with IP20 rating
  • Complies with IEC & AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Medium Current Filter
Brand
Novaris
Series
SFM1
Application
Power, Distribution Boards and Domestic MSB, Critical Installations up to 125 A per phase

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Max. Backup Fuse
40A
Max. Load Current
40A
No. of Phases
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
360V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
50kA
Alarm Contact
SPST NC power and thermal failure
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
