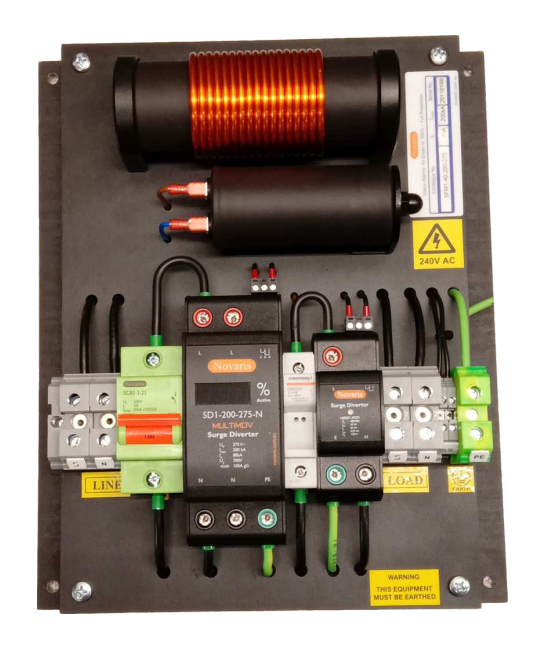

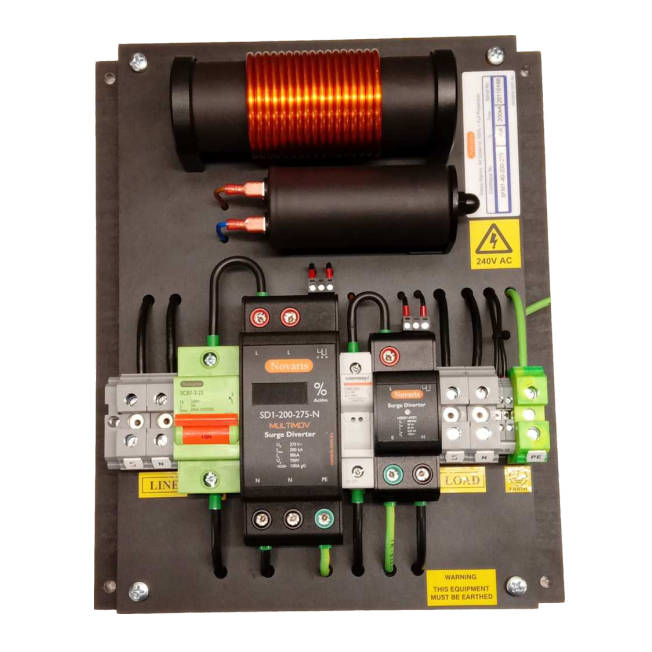

Novaris SFM1-40-200-275 Surge Filter 25kA 1 PH 200kA 230VAC Panel Mounting IP20

Product Code: SFM1-40-200-275

  • Rated for 230 VAC with 200 kA surge capacity
  • LED display for power and thermal failure alerts
  • Complies with IEC 61643-11:2011, AS/NZS 1768:2007
  • Operates in temperatures from -40 to 70°C
  • Provides L-N, L-PE, N-PE protection modes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Medium Current Filter
Brand
Novaris
Series
SFM1
Application
Power, Main Switchboards, Critical installations up to 125 A per phase

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
40A
Max. Load Current
40A
No. of Phases
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
360V
Max. Discharge Current Imax (8/20µs)
200kA
Short Circuit Current Rating
50kA
Alarm Contact
SPST NC power and thermal failure
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
35 mm2

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
