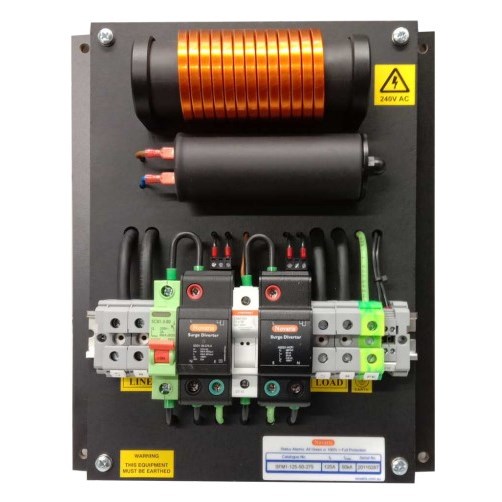

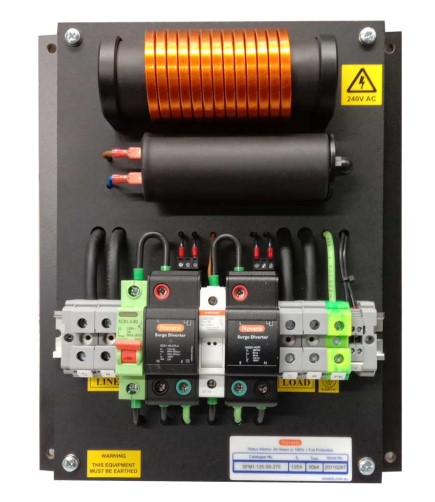

Novaris SFM1-125-50-275 3-Stage Surge Filter 6.25kA 1 PH 50kA 230VAC Panel Mount IP20

Product Code: SFM1-125-50-275

  • Surge Filter with 230 VAC rating
  • LED display for power and thermal status
  • IP20 protection, panel mounting
  • Operates in -40 to 70°C range
  • Complies with IEC 61643-11:2011, AS/NZS 1768:2007
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Filters
Brand
Novaris
Series
SFM1
Application
Critical installations, sensitive electronics and computer equipment

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)50kA (N-PE)
Max. Backup Fuse
125A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPST NC
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 35mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
110mm
Height
344mm
Width
284mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
