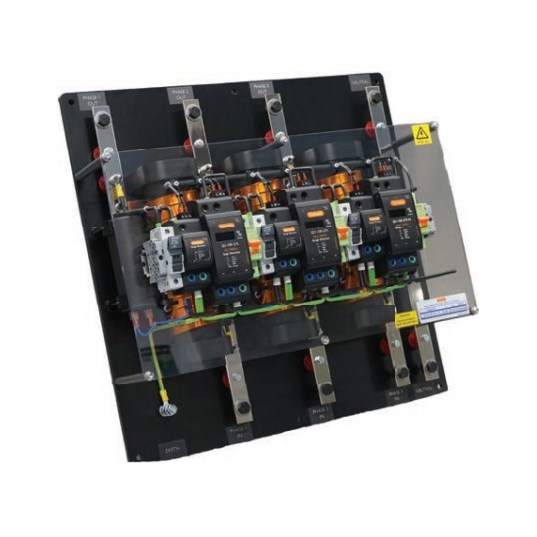

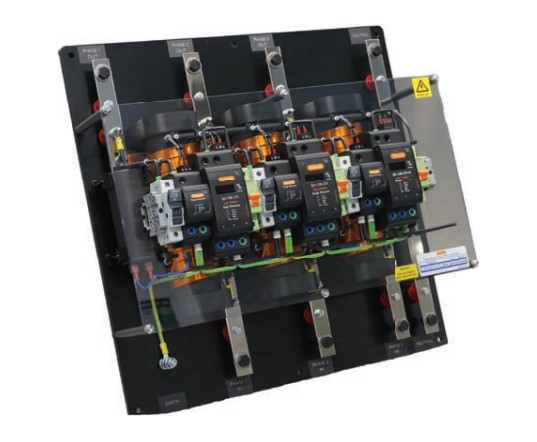

Novaris SFH3-250-200-275 Surge Filter 3 PH 200kA 230VAC 50Hz Wall Mount IP55

Product Code: SFH3-250-200-275

  • Rated for 230 VAC, 200 kA, 3-phase systems
  • IP55 protection for harsh environments
  • Wall-mounted with compact dimensions
  • Operates in -40 to 70°C temperature range
  • Complies with IEC and AS/NZS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Current Filter
Brand
Novaris
Series
SFH3 (160 A-400 A)
Application
Power, Main Switchboards, Critical Installations more than 125 A per phase

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
250A
Max. Load Current
250A
No. of Phases
3
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
360V
Max. Discharge Current Imax (8/20µs)
200kA
Short Circuit Current Rating
50kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
M10

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
