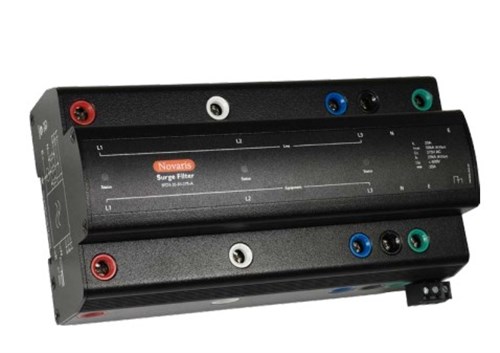

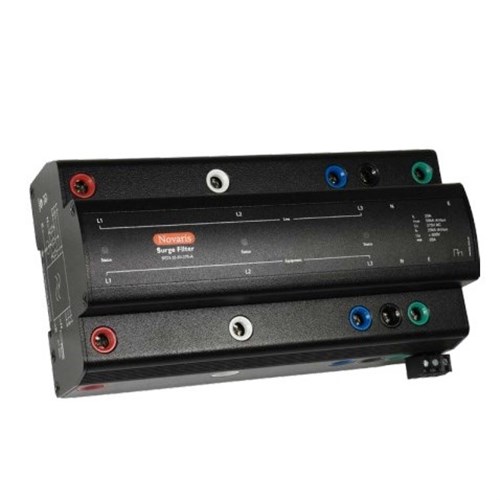

Novaris SFD3-32-50-275-A Surge Filter 6.25kA 15kA 3 PH 50kA 60kA 275VAC 255VAC IP20

Product Code: SFD3-32-50-275-A

  • Surge filter for 3-phase systems
  • Rated voltage: 275 VAC (L-N)
  • DIN Rail mounting, IP20 protection
  • Operates in -40 to 70°C range
  • Compliant with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SFD3
Application
Critical installations, sensitive electronics and computer equipment with single phase loads up to 32 A

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)50kA (N-PE)
Max. Backup Fuse
32A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
69mm
Height
95mm
Width
180mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
