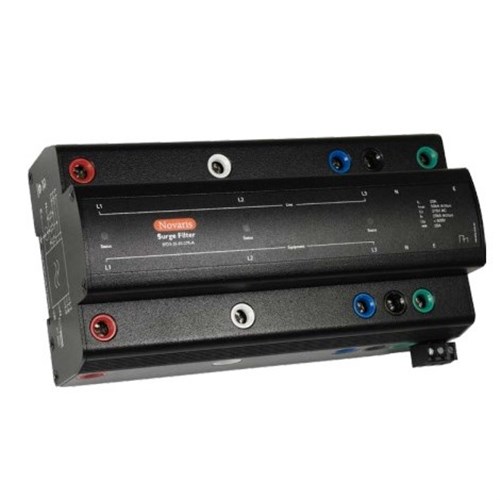

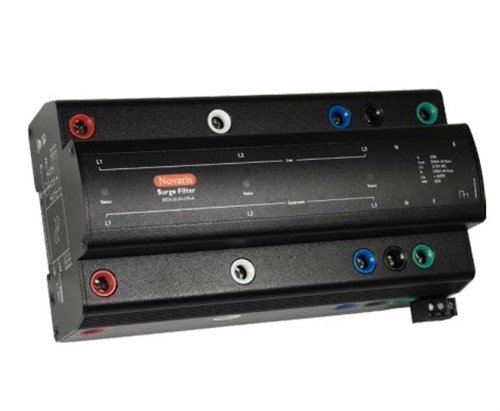

Novaris SFD3-20-50-275-A Surge Filter 6.25kA 15kA 3-P 3 PH 50kA 60kA 275VAC 255VAC IP20

Product Code: SFD3-20-50-275-A

  • Surge filter for 3-phase systems
  • High surge capacity: 50 kA (L-N), 60 kA (N-PE)
  • Compact design: 180x95x69 mm
  • Easy DIN rail mounting
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Three Phase Surge Filter
Brand
Novaris
Series
SFD3
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Max. Backup Fuse
20A
Max. Load Current
20A
No. of Phases
3
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
1000V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
25kA
Alarm Contact
SPDT power and thermal failure
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
180mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
