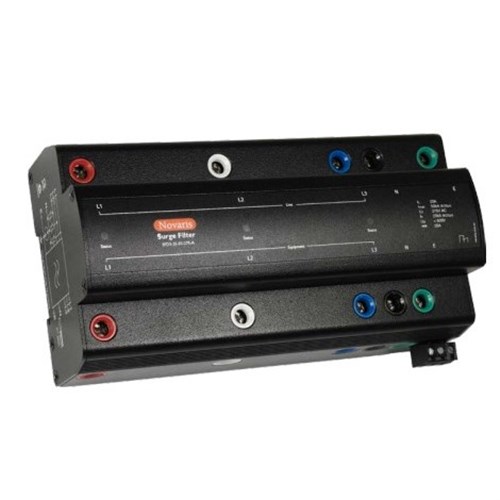

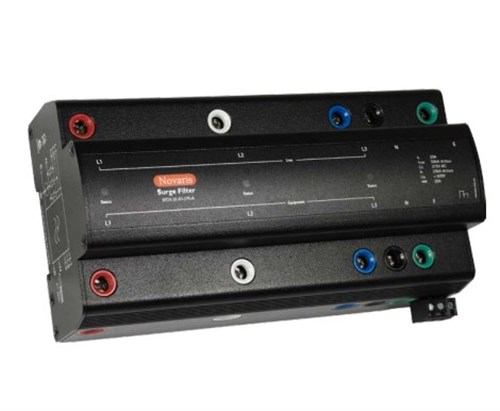

Novaris SFD3-10-50-275-A Surge Filter 6.25kA 15kA 3-P 3 PH 50kA 60kA 275VAC 255VAC IP20

Product Code: SFD3-10-50-275-A

  • Surge filter for 3-phase systems
  • High surge capacity: 50 kA (L-N), 60 kA (N-PE)
  • Compact DIN rail mounting
  • IP20 protection rating
  • Complies with IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SFD3
Application
Critical installations, sensitive electronics and computer equipment with single phase loads up to 32 A

Electrical

Max. Backup Fuse
10A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
50kA

Dimensions & Physical Data

Depth
69mm
Height
95mm
Width
180mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
