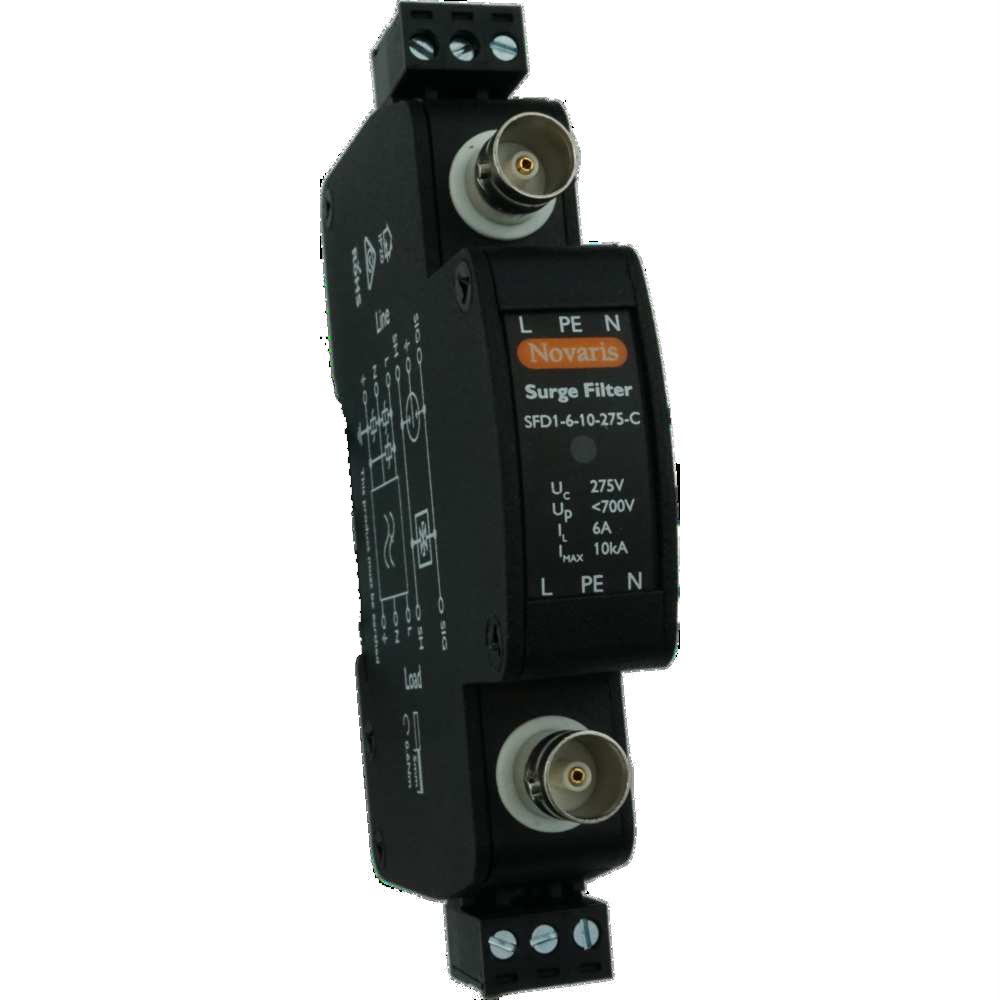

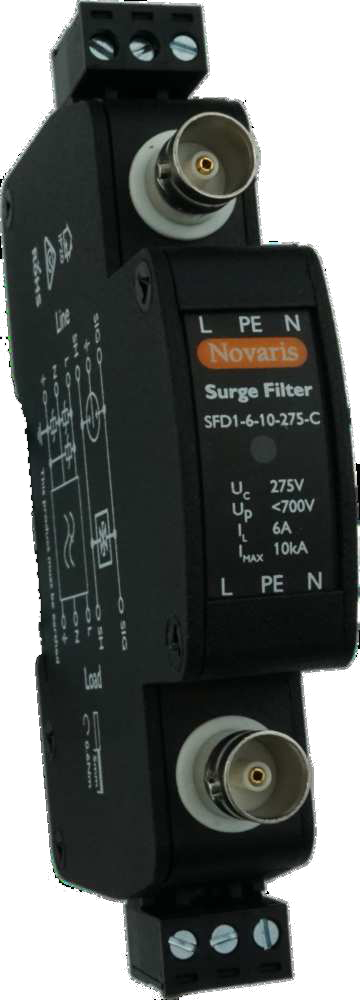

Novaris SFD1-6-10-275-C Combined Power and Signal Protector 1 PH 10kA Power 20kA Signal 230VAC 50/60Hz TS35 116mm H IP20

Product Code: SFD1-6-10-275-C

  • Surge protection for 230 VAC systems
  • Handles 10 kA power, 20 kA signal
  • Compact size: 18x116x70 mm
  • IP20 protection rating
  • Easy TS35 DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sfd1 Combined Cctv Protection
Brand
Novaris
Series
SFD-C
Application
Signal, Network and CCTV

Electrical

Max. Backup Fuse
6:00 AM
Max. Load Current
6:00 AM
No. of Phases
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230 V AC
Voltage Protection Level Up
900 V
Max. Discharge Current Imax (8/20µs)
10 kA
Short Circuit Current Rating
10 kA
Nominal Discharge Current Inom (8/20µs)
4 kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
2.5 mm2

Dimensions & Physical Data

Depth
115 mm
Height
69 mm
Width
18 mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
