Products

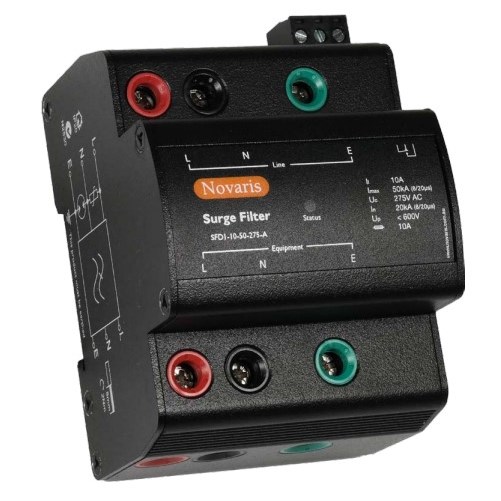

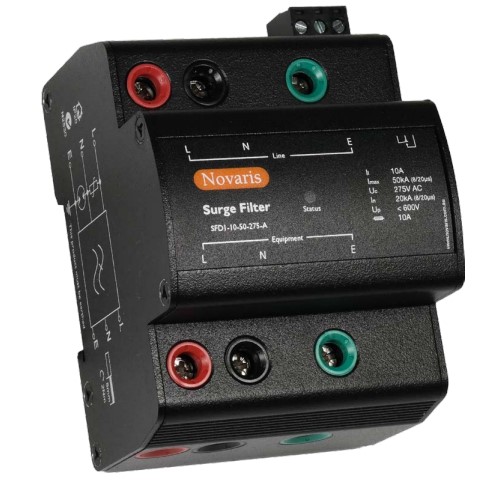

Novaris SFD1-32-100-275 Surge Filter 6.25kA 15kA 1-P 1 PH 32A 230VAC TS35 Panel Mount Metal IP20

Product Code: SFD1-32-100-275

  • Rated for 230 VAC, 32 A, single-phase use
  • LED status display for easy monitoring
  • Compact design: 115x108x69 mm
  • Mounts on TS35 DIN rail or panel
  • Fast response time <100 ns (N-PE)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Single Phase Surge Filter
Brand
Novaris
Series
SFD1
Application
Power, Control Cabinets and Final Sub Boards

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
32A
Max. Load Current
32A
No. of Phases
1
Modes of Protection
L-N, L-PE, N-PE
Nominal Voltage
230V AC
Voltage Protection Level Up
2000V
Max. Discharge Current Imax (8/20µs)
100kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
108mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
