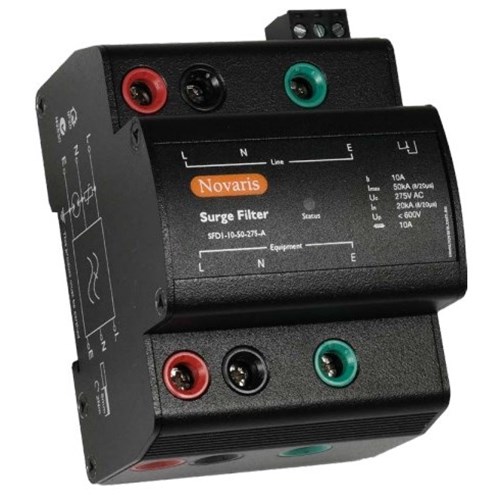

Novaris SFD1-20-50-275 Surge Filter 3kA 15kA 1 PH 20A 230VAC TS35 Panel Mount Metal IP20

Product Code: SFD1-20-50-275

  • Surge filter for 230 VAC, 20 A circuits
  • LED status display for easy monitoring
  • IP20 protection with TS35 DIN rail mounting
  • Fast response time of <100 ns (N-PE)
  • Complies with IEC, AS/NZS, UL, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SFD1
Application
Critical installations, sensitive electronics and computer equipment with single phase loads up to 32 A

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)15kA (N-PE)
Max. Backup Fuse
20A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<1200V
Max. Discharge Current Imax (8/20µs)
50kA
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
16 mm²

Dimensions & Physical Data

Depth
95mm
Height
69mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
