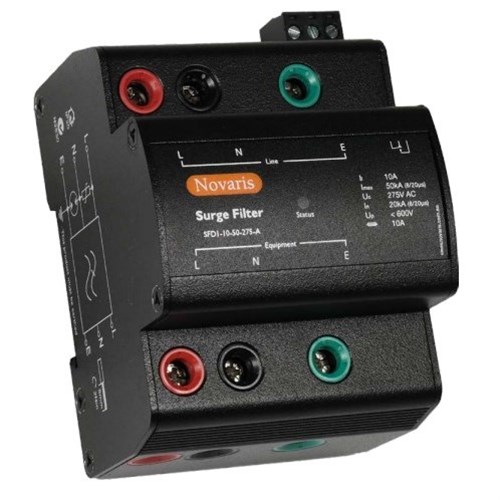

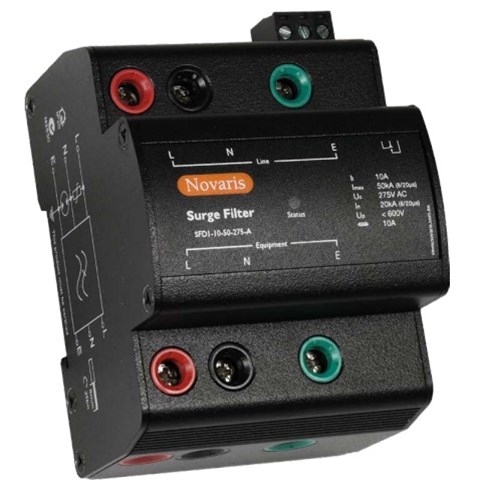

Novaris SFD1-20-100-275-A Surge Filter 6.25kA 15kA 1 PH 20A 230VAC TS35 Panel Mount Metal IP20

Product Code: SFD1-20-100-275-A

  • Surge filter for 230 VAC, 20 A single-phase circuits
  • LED status display for easy monitoring
  • Compatible with TS35 DIN rail or panel mounting
  • Complies with IEC, AS/NZS, UL, IEEE standards
  • Fast response time of <100 ns (N-PE)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SFD1
Application
Critical installations, sensitive electronics and computer equipment with single phase loads up to 32 A

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)15kA (N-PE)
Max. Backup Fuse
20A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<1200V
Max. Discharge Current Imax (8/20µs)
100kA
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
16 mm²

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
