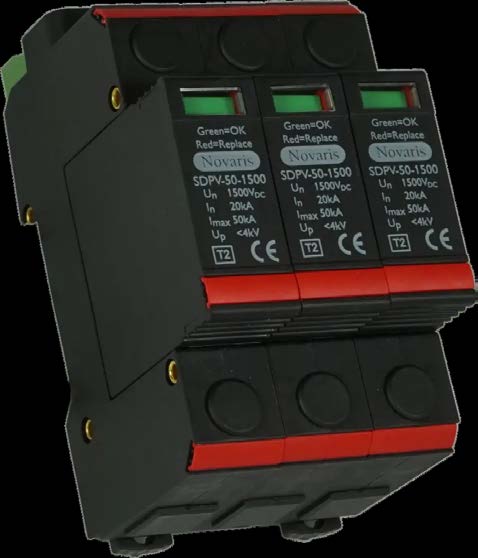

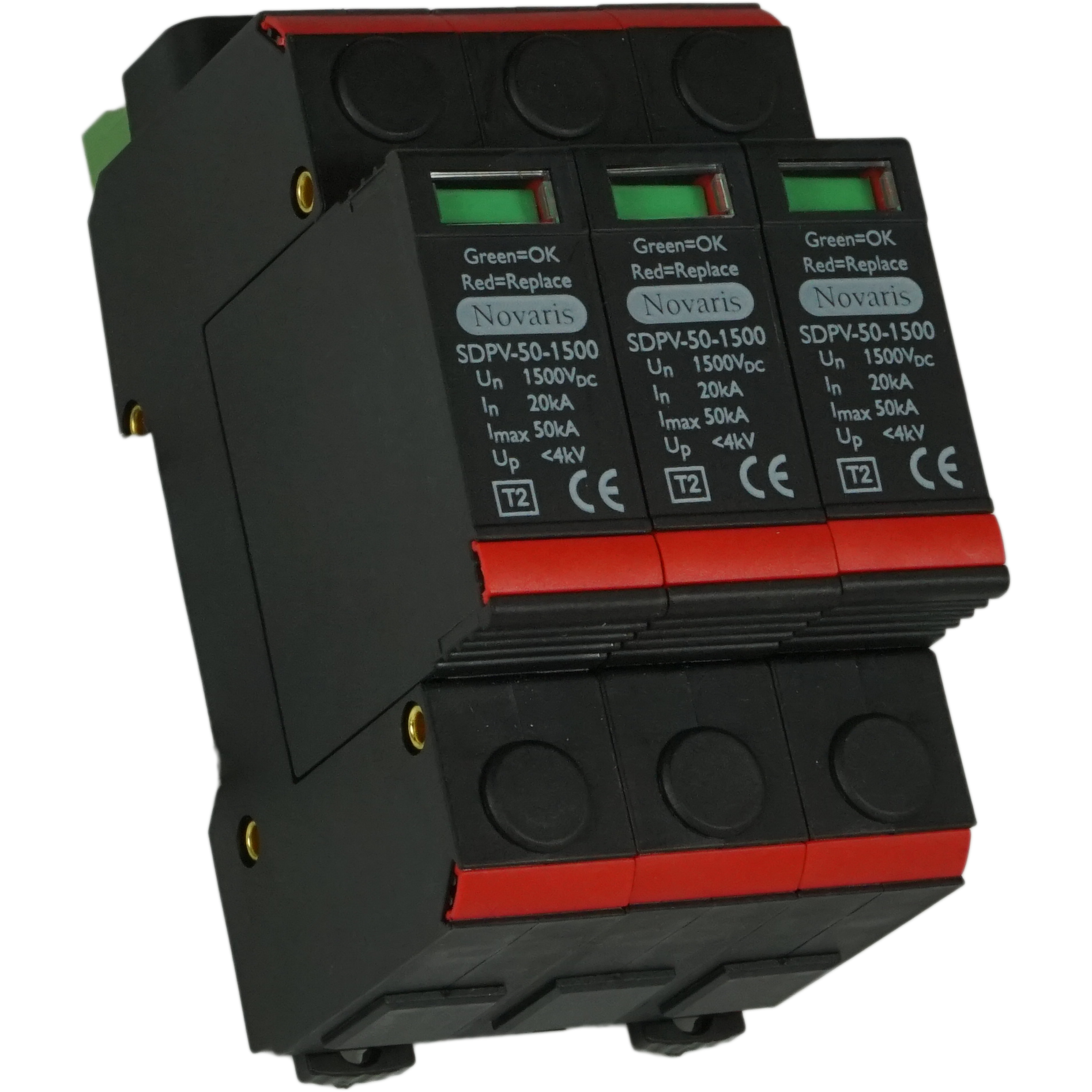

Novaris SDPV-50-1500 Photovoltaic Surge Diverter 50 kA (L-L) 50 kA (L-PE) 1500VDC 50 kA 2 Ph

Product Code: SDPV-50-1500

  • Surge protection with 50 kA rating
  • Handles up to 1500 VDC voltage
  • IP20 rated for solid object protection
  • Mounts on TS35 DIN Rail easily
  • Operates in -40 to 85°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Sdpv Solar Protector
Brand
Novaris
Series
SDPV
Application
Power, PV Systems

Electrical

No. of Phases
2
Nominal Voltage
1500V DC
Voltage Protection Level Up
< 4000V
Max. Discharge Current Imax (8/20µs)
50kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
20kA

Mechanical

Terminal Size
35 mm2

Dimensions & Physical Data

Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
