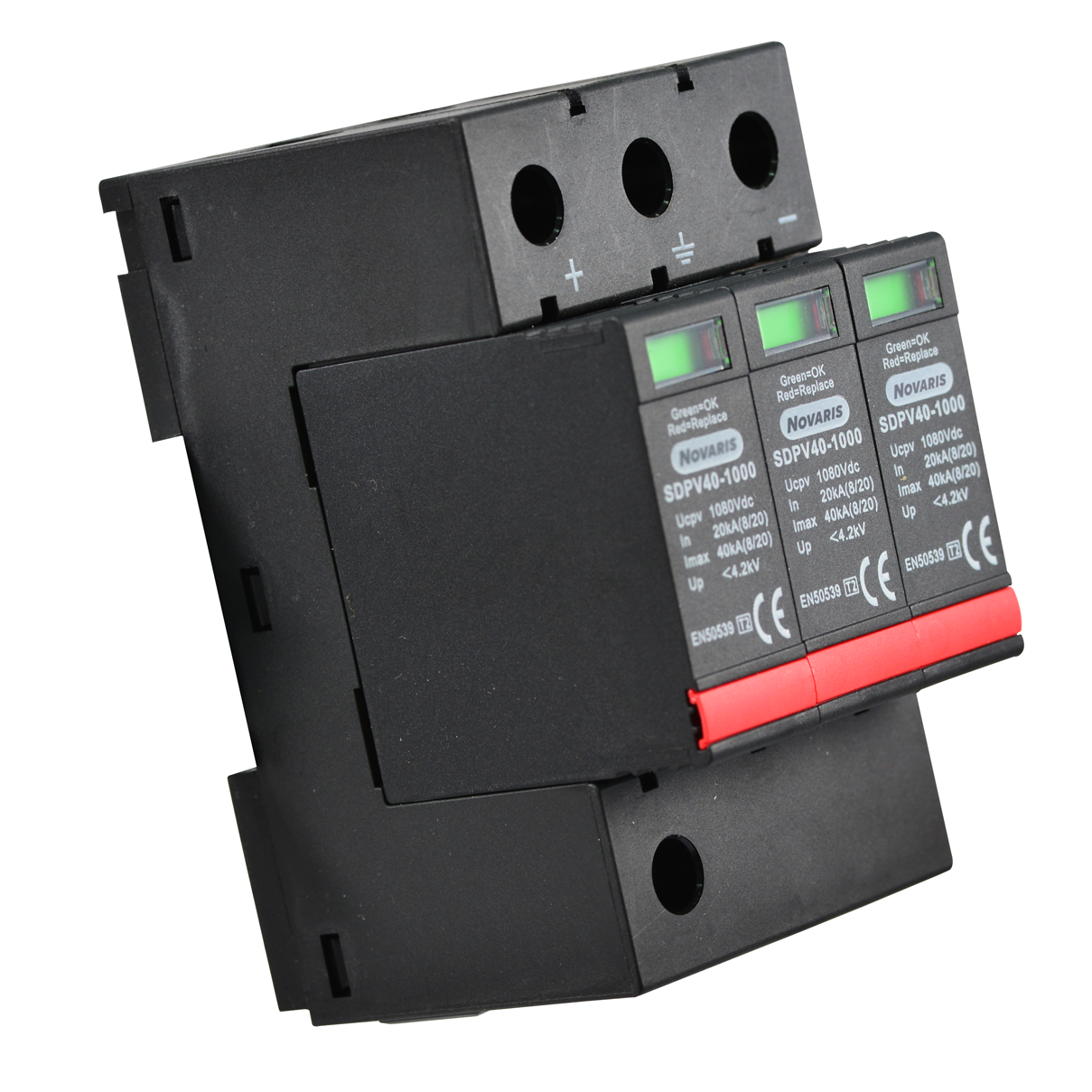

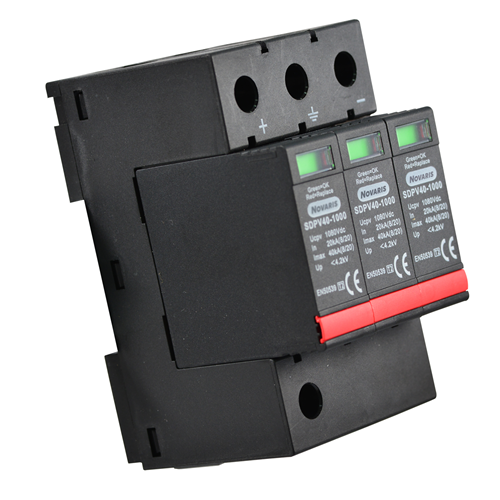

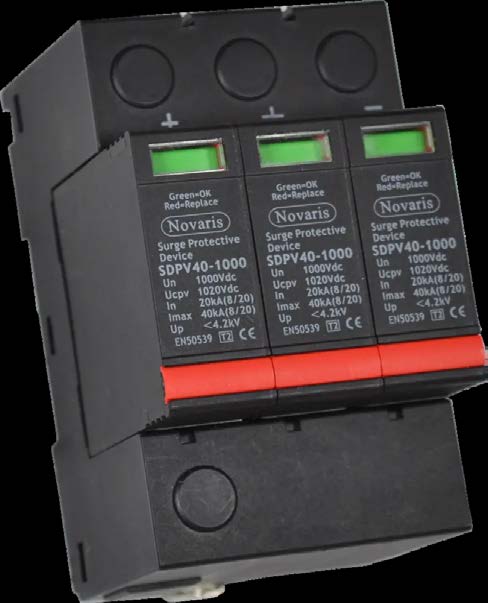

Novaris SDPV-40-1000 Photovoltaic Surge Diverter 40 kA (L-L) 40 kA (L-PE) 1000VDC 40 kA 2 Ph

Product Code: SDPV-40-1000

  • Surge protection up to 40 kA
  • Rated for 1000 VDC systems
  • IP20 protection rating
  • Fits TS35 DIN rail mounting
  • Operates from -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solar Protector
Brand
Novaris
Series
SDPV
Application
Photovoltaic system DC-side protection

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)6.25kA (L-PE)
Nominal Voltage
1000V DC
Voltage Protection Level Up
<3000V (L-L)<3000V (L-PE)
Max. Discharge Current Imax (8/20µs)
50kA
Nominal Discharge Current Inom (8/20µs)
20kA (L-L)20kA (L-PE)
Max. Continuous Operating Voltage
710VAC1000 VDC

Dimensions & Physical Data

Depth
65mm
Height
100mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
