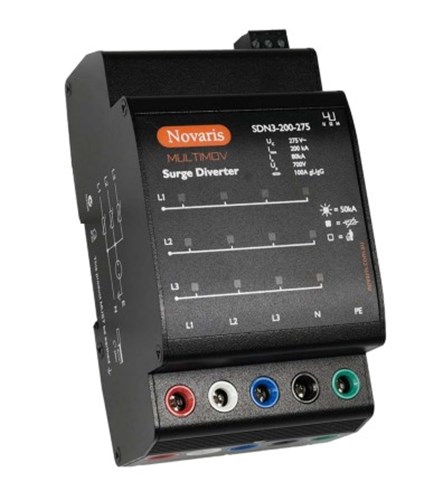

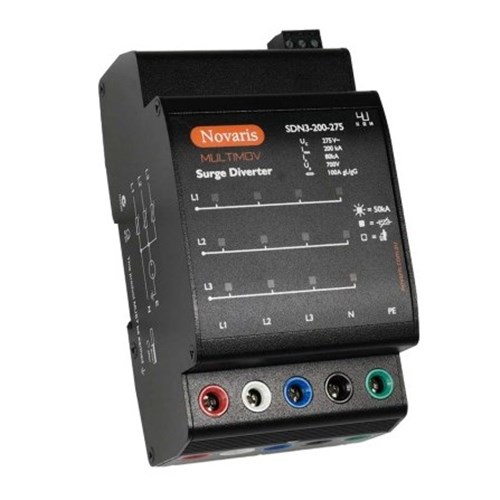

Novaris SDN3-200-275 Surge Diverter 25kA 30kA 3 PH 200kA 150kA 275VAC 255VAC IP20

Product Code: SDN3-200-275

  • 275 VAC rated for L-N, 255 VAC for N-PE
  • Handles up to 200 kA (L-N) and 150 kA (N-PE)
  • Compact DIN Rail mounting
  • IP20 protection rating
  • Meets IEC, AS/NZS, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDN3
Application
Industrial and commercial main switchboards

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA (L-N)100kA (N-PE)
Max. Backup Fuse
10A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
200kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
80kA (L-N)100kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
69mm
Height
141mm
Width
80mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
