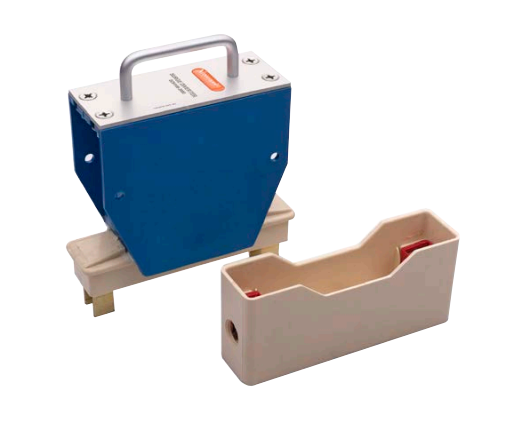

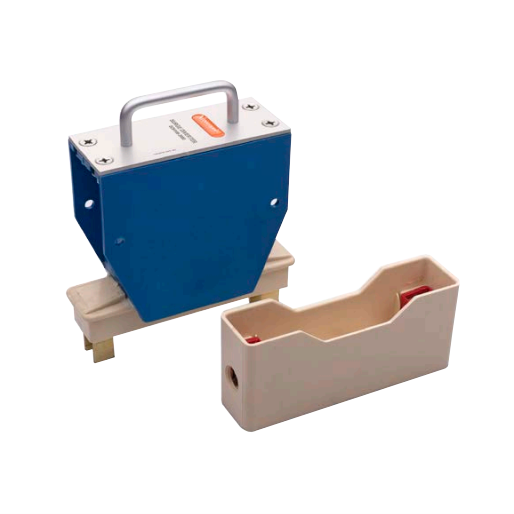

Novaris SDH-200-1000-P High Voltage Surge Diverter 200kA 1000VAC Shunt Fuse Base Mount ABS IP20

Product Code: SDH-200-1000-P

  • Handles up to 200 kA surge current
  • Suitable for 1000 VAC systems
  • Fast response time under 5 ns
  • Meets IEC, AS/NZS, IEEE standards
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Voltage Surge Diverter
Brand
Novaris
Series
SDH
Application
Power, Airport Runway Infrastructure, Constant Current Regulators

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
63A
Max. Discharge Current Imax (8/20µs)
200kA
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
1000 V AC

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
162mm
Width
57mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
