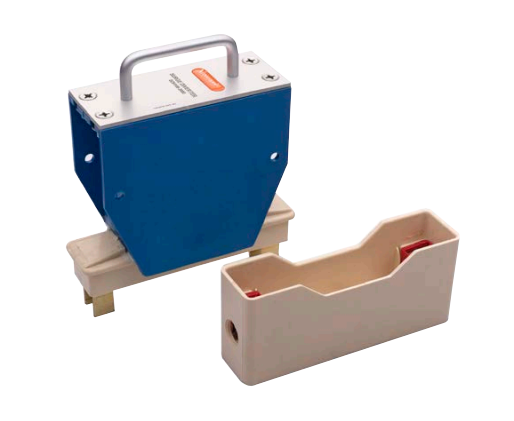

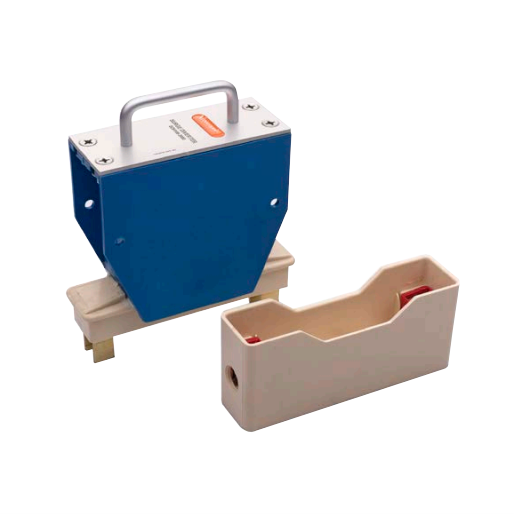

Novaris SDH-200-1000-AH High Voltage Surge Diverter With Alarm 200kA 1000VAC Shunt Fuse Base Mount ABS IP20

Product Code: SDH-200-1000-AH

  • Handles up to 1000 VAC, 200 kA surge current
  • Quick response time of less than 5 ns
  • Rated for IP20 protection in tough conditions
  • Complies with IEC, AS/NZS, IEEE standards
  • Operates between -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Voltage Surge Diverter
Brand
Novaris
Series
SDH
Application
Power, Airport Runway Infrastructure, Constant Current Regulators

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
63A
Max. Discharge Current Imax (8/20µs)
200kA
Alarm Contact
Thermal alarm with voltage free contacts, normally closed
Nominal Discharge Current Inom (8/20µs)
80kA
Max. Continuous Operating Voltage
1000 V AC

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
162mm
Width
57mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
