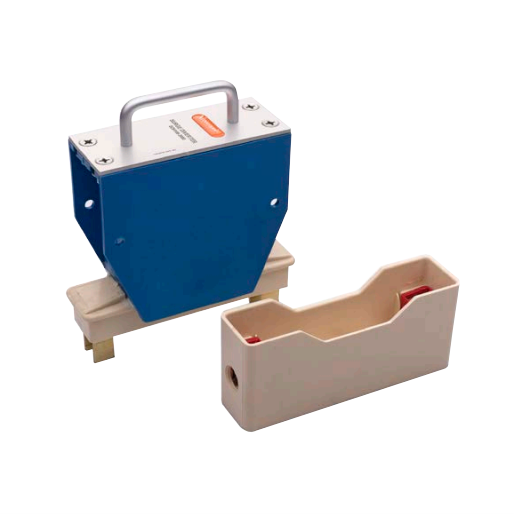

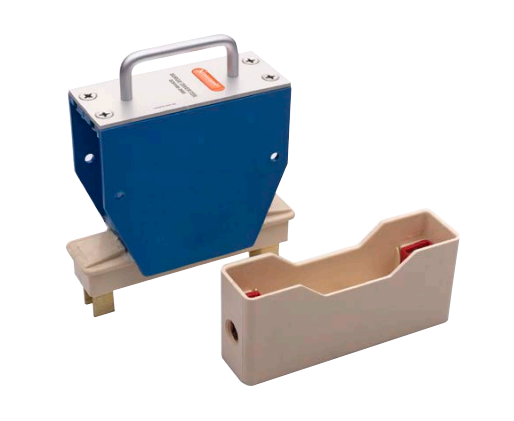

Novaris SDH-100-550-PH High Voltage Surge Diverter 100kA 550VAC Shunt Fuse Base Mount ABS IP20

Product Code: SDH-100-550-PH

  • Surge diverter with 550 VAC rating
  • Handles up to 100 kA current
  • Shunt connection type, IP20 protection
  • Fuse base mounting, compact size
  • Complies with IEC, AS/NZS & IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Voltage Surge Diverter
Brand
Novaris
Series
SDH
Application
Power, Airport Runway Infrastructure, Constant Current Regulators

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
Voltage Protection Level Up
<1600V
Max. Discharge Current Imax (8/20µs)
100kA
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
550 V AC

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
162mm
Width
57mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
