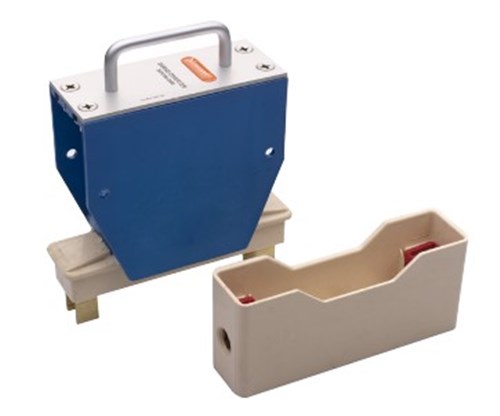

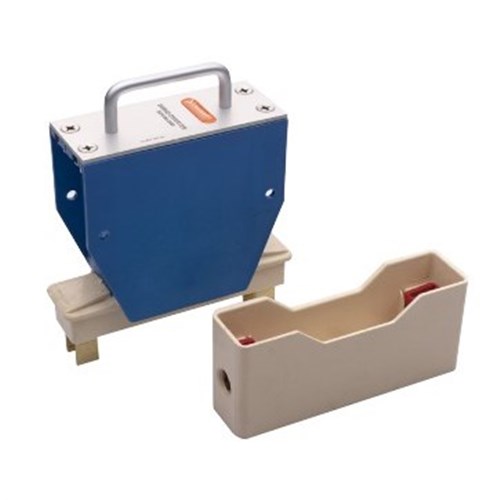

Novaris SDH-100-2000-PH High Voltage Surge Diverter 100kA 2000VAC Shunt 57mm W 162mm D ABS Ceramic Blue IP20

Product Code: SDH-100-2000-PH

  • Surge protection up to 100 kA
  • Rated for 2000 VAC systems
  • Compact size: 57x214x162 mm
  • Fast response time <5 ns
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDH
Application
Aviation runway lighting, mining, industrial processing and railway industries

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
No. of Poles (Total)
1
Nominal Voltage
275V AC/DC
Voltage Protection Level Up
<4800V
Max. Discharge Current Imax (8/20µs)
100kA
Nominal Discharge Current Inom (8/20µs)
40kA
No. of Poles
1P
Max. Continuous Operating Voltage
2000V

Mechanical

Terminal Size
25mm²

Dimensions & Physical Data

Height
215mm
Width
57mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20
