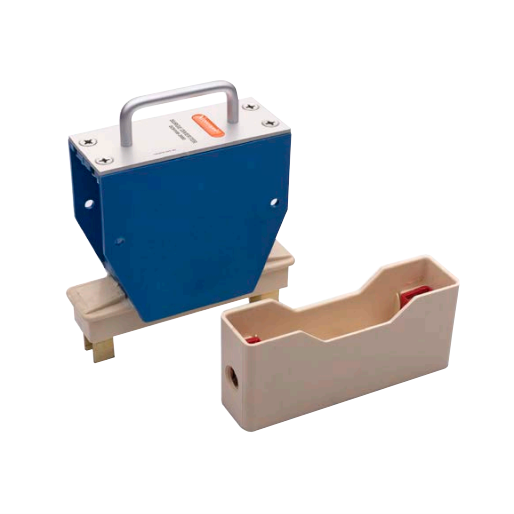

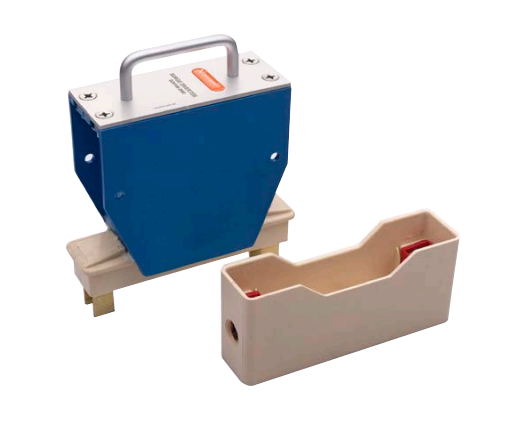

Novaris SDH-100-2000-AP High Voltage Surge Diverter With Alarm 100kA 2000VAC Shunt Fuse Base Mount ABS IP20

Product Code: SDH-100-2000-AP

  • Surge diverter with 2000 VAC rating
  • Handles up to 100 kA current
  • IP20 protection, shunt connection
  • Compact: 57x214x162 mm dimensions
  • Fast response time <5 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High Voltage Surge Diverter
Brand
Novaris
Series
SDH
Application
Power, Airport Runway Infrastructure, Constant Current Regulators

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA
Max. Backup Fuse
63A
Voltage Protection Level Up
<4800V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
Thermal alarm with voltage free contacts, normally closed
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
2000 V AC

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
162mm
Width
57mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20
