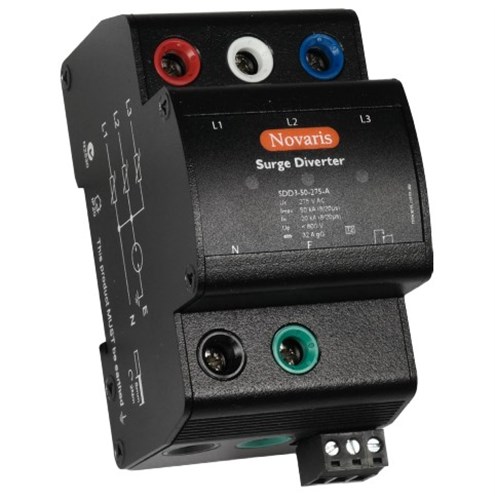

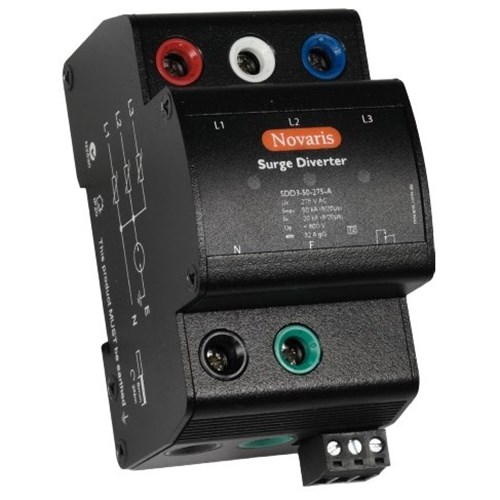

Novaris SDD3-50-275 Surge Diverter 6.25kA 3 PH 50kA 25kA 230VAC TS35 IP20

Product Code: SDD3-50-275

  • Surge protection for 230 VAC systems
  • Handles up to 50 kA (L-N), 25 kA (N-PE)
  • LED display for power and thermal status
  • Mounts on TS35 DIN Rail, IP20 rated
  • Complies with IEC, AS/NZS, IEEE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Surge Diverter
Brand
Novaris
Series
SDD3
Application
Robust metal enclosures and active alarm monitoring

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)10kA (N-PE)
Max. Backup Fuse
32A
Max. Continuous Operating Voltage (AC/DC)
275VAC (L-N)255VAC (N-PE)
No. of Poles (Total)
3
Nominal Voltage
230V
Nominal Discharge Current (8/20µs)
20kA (L-N)10kA (N-PE)
Voltage Protection Level Up
<1000V
Maximum Discharge Current Imax (8/20µs)
50kA

Mechanical

Mounting Method
DIN Rail
Terminal Size
16 mm²

Dimensions

Depth
95 mm
Height
70 mm
Width
72 mm

Environmental

Operating Temperature
-40°C - 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
