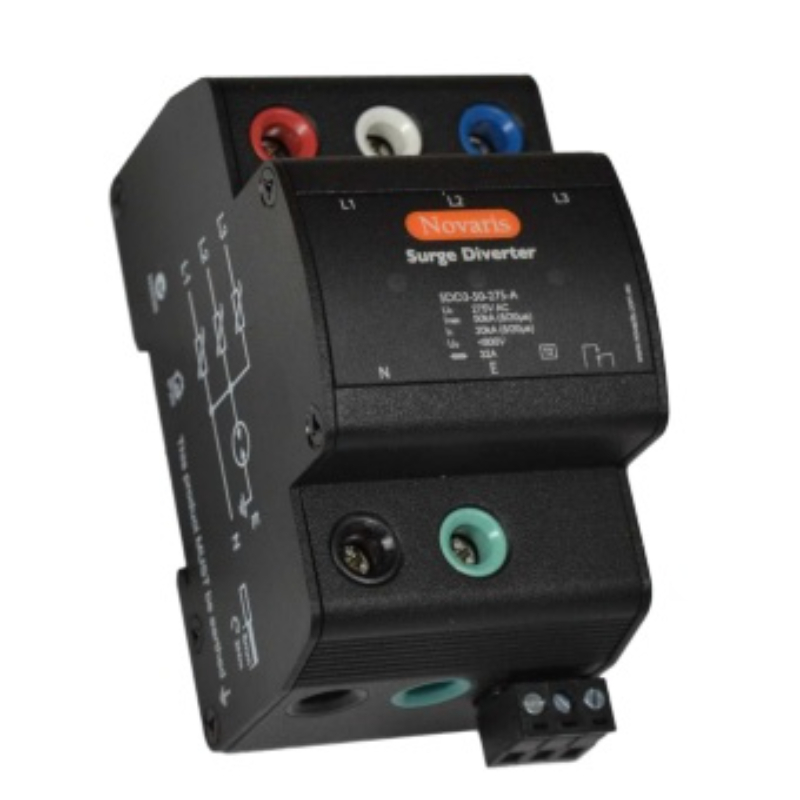

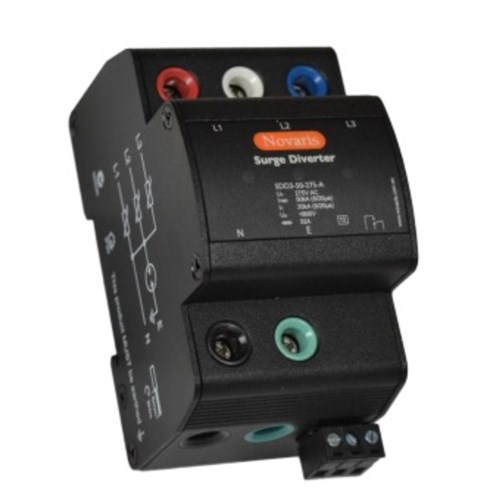

Novaris SDD3-50-275-A Surge Diverter 6.25kA 3 PH 50kA 25kA 230VAC TS35 IP20

Product Code: SDD3-50-275-A

  • Surge protection for 230 VAC systems
  • Handles up to 50 kA surge current
  • LED display for power and thermal status
  • Compact design with IP20 protection rating
  • Easy TS35 DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Surge Diverter
Brand
Novaris
Series
SDD3
Application
Robust metal enclosures and active alarm monitoring

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)10kA (N-PE)
Max. Backup Fuse
63A
Max. Continuous Operating Voltage (AC/DC)
275VAC (L-N)255VAC (N-PE)
No. of Poles (Total)
3
Nominal Voltage
230V
Nominal Discharge Current (8/20µs)
20kA (L-N)10kA (N-PE)
Voltage Protection Level Up
<1000V
Maximum Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPDT

Mechanical

Mounting Method
DIN Rail
Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions

Depth
95 mm
Height
70 mm
Width
72 mm

Environmental

Operating Temperature
-40°C - 70°C
IP Rating
IP20
