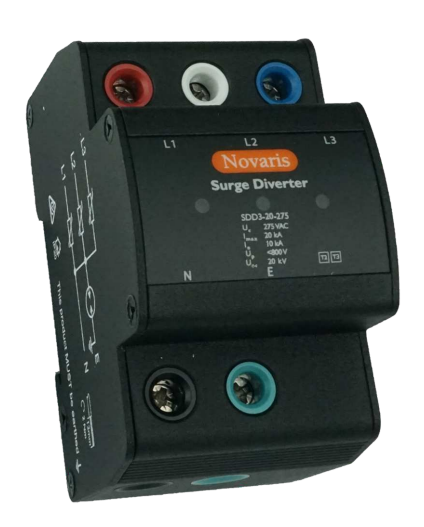

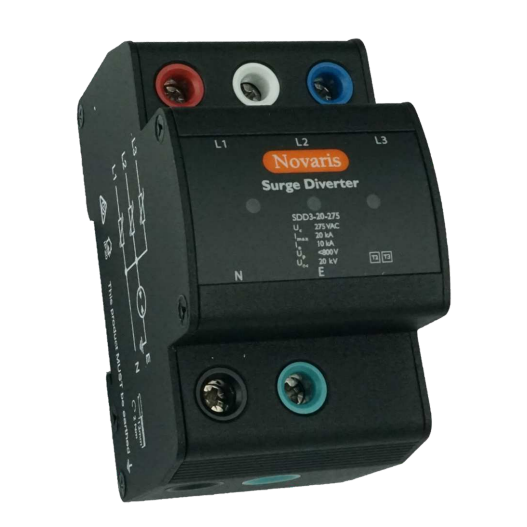

Novaris SDD3-20-275 Surge Diverter 3 PH 20kA 25kA 230VAC Shunt TS35 Aluminium IP20

Product Code: SDD3-20-275

  • Surge filter for 230 VAC systems
  • Protects with up to 25 kA current
  • LED displays for power & thermal status
  • Compact TS35 DIN rail mounting
  • Complies with IEC, AS/NZS, IEEE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Dinsafe Surge Diverter
Brand
Novaris
Series
SDD3
Application
Power, Distribution Boards and Domestic MSB, Commercial and Industrial

Electrical

Max. Backup Fuse
16A
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
16 mm2

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
54mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
