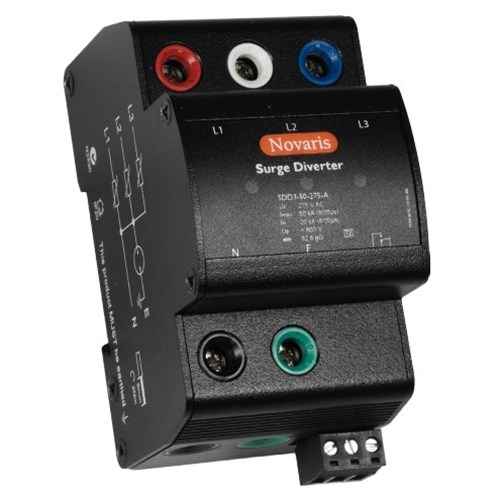

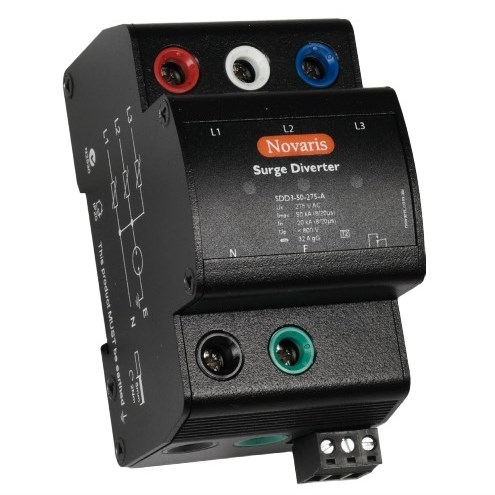

Novaris SDD3-100-275 SDD Surge Diverter 12.5kA 50kA 3-P 3 PH 100kA 60kA 230VAC TS35 IP20

Product Code: SDD3-100-275

  • 230 VAC, 3-phase surge protection
  • High current rating of 100 kA (L-N)
  • Quick response time <25 ns (L-N)
  • LED display for power and thermal status
  • Compact DIN rail mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDD3
Application
Robust metal enclosures and active alarm monitoring

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)50kA (N-PE)
Max. Backup Fuse
63A
No. of Poles (Total)
3
Nominal Voltage
230V
Voltage Protection Level Up
<1000V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
72mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
