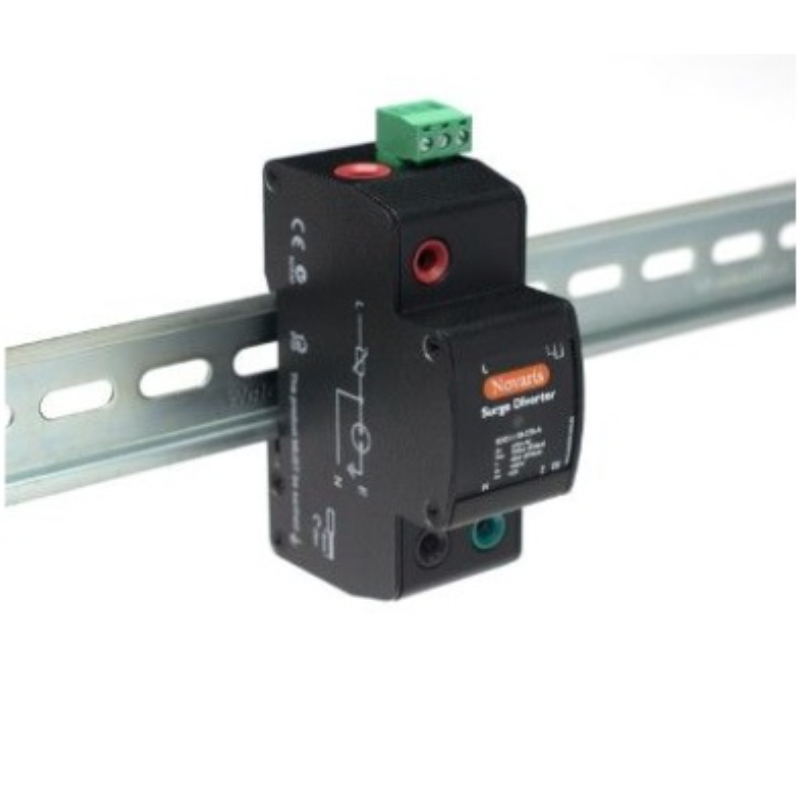

Novaris SDD1-50-275-A DB Surge Diverter 6.25kA 50kA 1 PH 50kA 25kA 230VAC TS35 IP20

Product Code: SDD1-50-275-A

  • Rated for 230 VAC, single-phase systems
  • High surge current capacity: 50 kA (L-N)
  • Compact size: 18 mm width on DIN rail
  • LED indicators for power and thermal status
  • Complies with IEC, AS/NZS, IEEE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDD1
Application
Robust metal enclosures and active alarm monitoring

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA (L-N)50kA (N-PE)
Max. Backup Fuse
63A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
50kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
20kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
