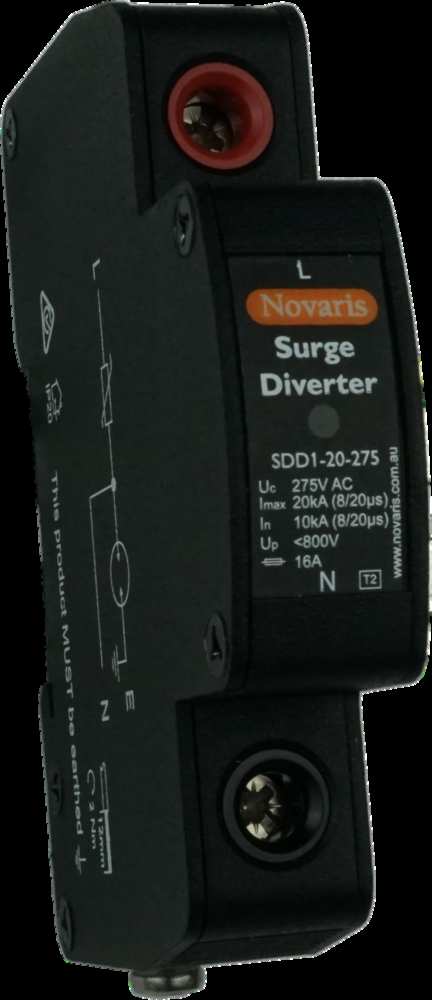

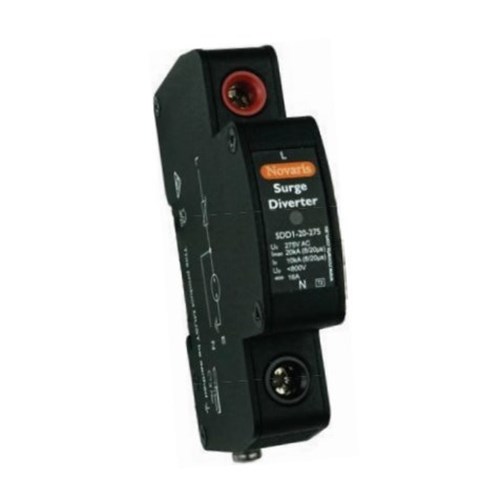

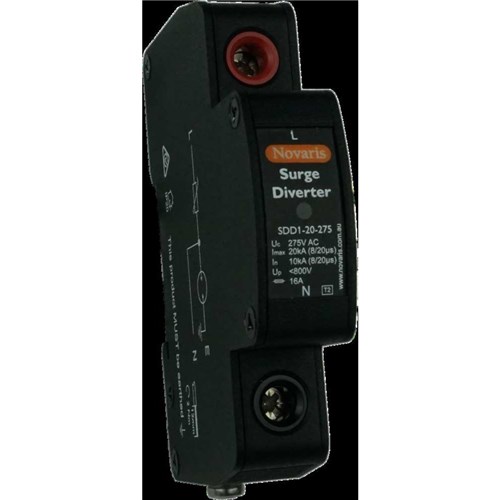

Novaris SDD1-20-275 DB Surge Diverter 1 PH 20kA 25kA 230VAC TS35 IP20

Product Code: SDD1-20-275

  • Surge protection for 230 VAC systems
  • Handles currents up to 25 kA
  • LED indicators for power and thermal issues
  • Compact design, fits TS35 DIN Rail
  • Complies with IEC, AS/NZS, IEEE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDD1
Application
Robust metal enclosures and active alarm monitoring

Electrical

Max. Backup Fuse
32A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA (L-N)10kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
16 mm²

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
