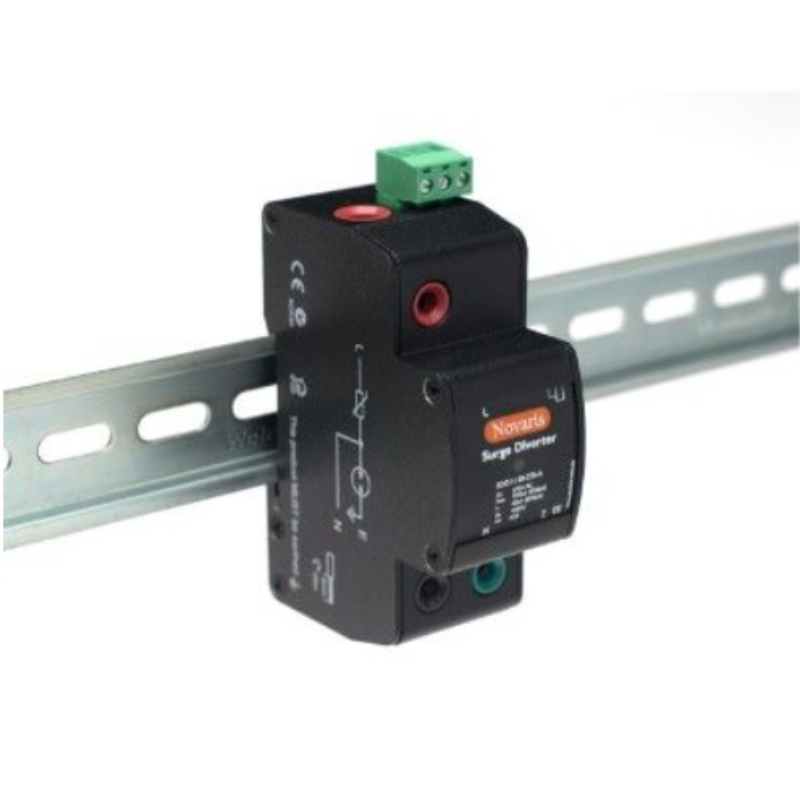

Novaris SDD1-100-275-A DB Surge Diverter 12.5kA 50kA 1 PH 100kA 60kA 230VAC TS35 IP20

Product Code: SDD1-100-275-A

  • Surge protection for 230 VAC systems
  • Handles up to 100 kA (L-N), 60 kA (N-PE)
  • LED display for power and thermal failure
  • Compact TS35 DIN Rail mounting, IP20 rated
  • Complies with IEC, AS/NZS, IEEE, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Diverter
Brand
Novaris
Series
SDD1
Application
Robust metal enclosures and active alarm monitoring

Electrical

Lightning Impulse Current Iimp (10/350µs)
12.5kA (L-N)50kA (N-PE)
Max. Backup Fuse
16A
No. of Poles (Total)
1
Nominal Voltage
230V
Voltage Protection Level Up
<800V
Max. Discharge Current Imax (8/20µs)
100kA
Alarm Contact
SPDT
Nominal Discharge Current Inom (8/20µs)
40kA (L-N)50kA (N-PE)
Max. Continuous Operating Voltage
275VAC (L-N)255VAC (N-PE)

Mechanical

Terminal Size
Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²

Dimensions & Physical Data

Depth
95mm
Height
70mm
Width
36mm

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP20
